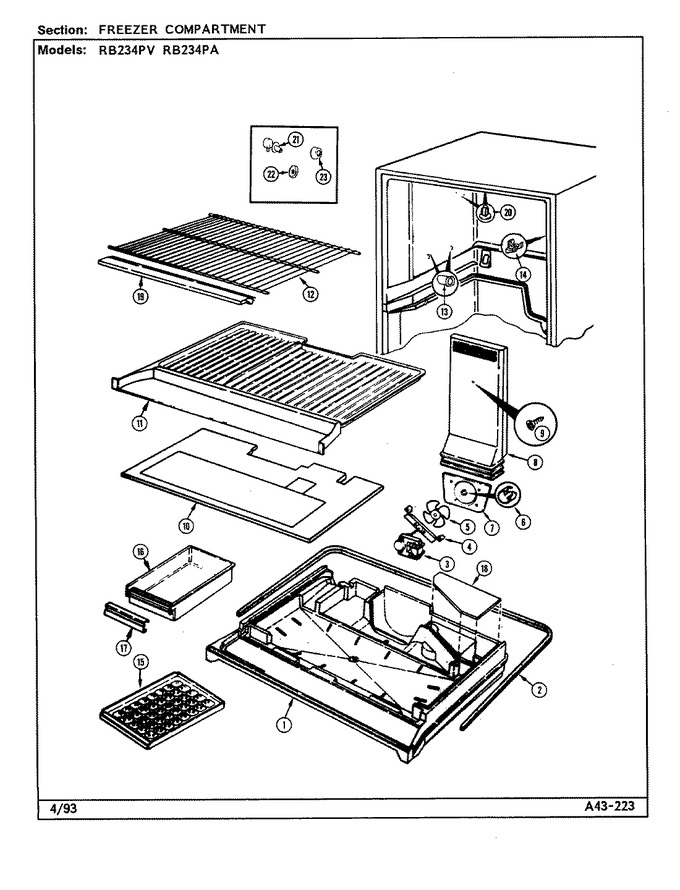

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Freezer Door


04 - Fresh Food Compartment


05 - Fresh Food Door


06 - Optional Ice Maker Kit


07 - Shelves & Accessories


08 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69406-1		Tray, Styrofoam Mullion		Appelez-nous	-
2	69414-4		Seal, Mullion Tray		Appelez-nous	-
2	69562-3		Seal, Mullion Tray		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	406062-1		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	69811-4		Orifice Assy., Damper		Appelez-nous	-
8	68592-4		Air Tunnel		Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	69400-1		Bottom, Frz.		Appelez-nous	-
11	68946-2		Seal		Appelez-nous	-
12	60438-30		Shelf, Frz		Appelez-nous	-
13	60313-1		Cup, Shelf		Appelez-nous	-
14	66101-1		Stud, Shelf		Appelez-nous	-
14	400019-1		Screw		Appelez-nous	-
15	WP841180A		Tray, Ice   (Replaces: 59281-2)			Immediately	$ 41.00
15	67114-4		Shelf, Ice Tray		Appelez-nous	-
15	67148-2		Divider, Ice Shelf		Appelez-nous	-
16	60653-1		Pan, Ice		Appelez-nous	-
17	60132-100		Trim, Handle Pan		Appelez-nous	-
18	66480-6		Cover, Plenum		Appelez-nous	-
19	68136-48		Trim Shelf		Appelez-nous	-
20	67557-1		Plug Button		Appelez-nous	-
21	68307-1		Grommet, Water Entry		Appelez-nous	-
22	68187-1		Cap, Connector		Appelez-nous	-
23	68387-1		Cap, Grommet		Appelez-nous	-
23	70041-1		Support, Ice Shelf		Appelez-nous	-
23	67149-1		Support, Divider		Appelez-nous	-
23	67150-1		Fastener, Divider		Appelez-nous	-
