SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Freezer Door


04 - Fresh Food Compartment


05 - Fresh Food Door


06 - Ice & Water Dispenser


07 - Ice Maker & Bin


08 - Shelves & Accessories


09 - Unit Compartment & System

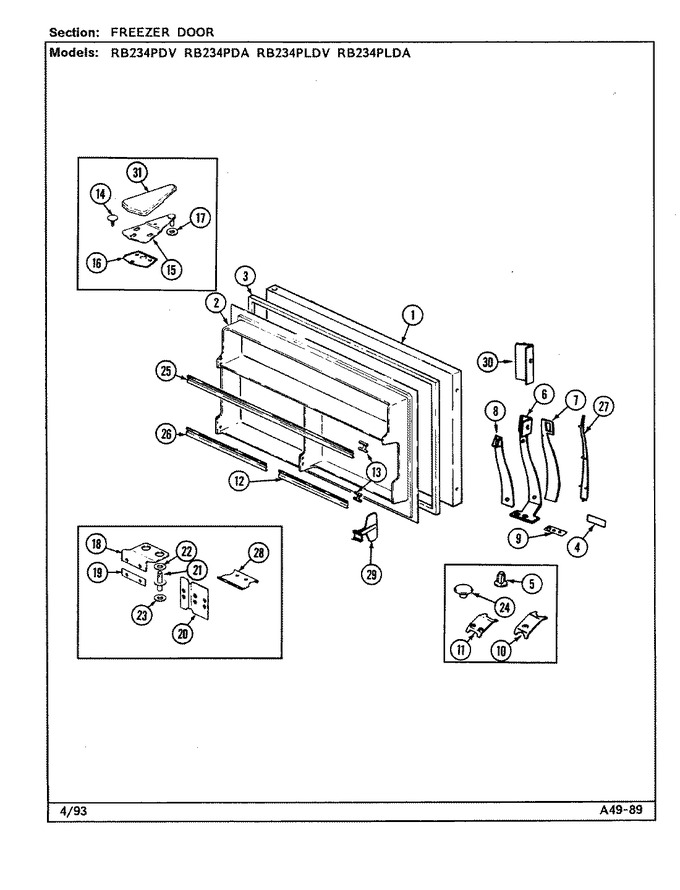

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-105-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69472-1		Liner, Frz. Door		Appelez-nous	-
3	70025-7		Gasket, Door		Appelez-nous	-
4	60603-18		Insert, Nameplate		Appelez-nous	-
5	55782-6		Plug Button (almond)		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
6	69300-4		Handle, Door----na		Appelez-nous	-
7	68016-5		Handle Insert, Front		Appelez-nous	-
8	60445-4		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
9	69301-1		Shim, Handle		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	WP61003045		Trim, Shelf Door   (Replaces: 68375-15)				$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	53709-20		Hinge, Upper		Appelez-nous	-
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	54233-1		Washer				$ 7.71
18	68811-2		Hinge, Center		Appelez-nous	-
18	65275-55		Screw		Appelez-nous	-
19	69515-1		Shim, Center Hinge		Appelez-nous	-
20	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
21	67322-1		Pin, Center Hinge		Appelez-nous	-
22	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
23	54233-2		Washer		Appelez-nous	-
24	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
24	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
25	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
26	WP61003045		Trim, Door Shelf   (Replaces: 68375-22)				$ 129.55
27	68017-3		Insert, Vinyl Clad		Appelez-nous	-
28	69256-2		Stop, Door		Appelez-nous	-
29	69759-2		Organizer		Appelez-nous	-
30	60453-33		Trim, Frz. Door (alm)		Appelez-nous	-
31	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
