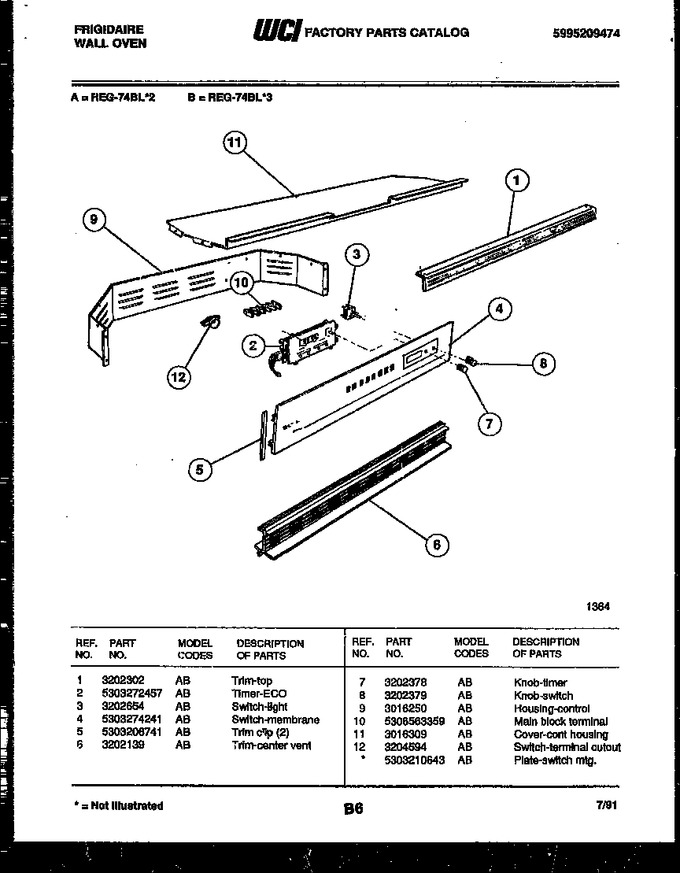

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202302 | Trim-top |
|
- | |||||
| 2 | 5303272457 | Timer-eco |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 5303274241 | Switch-membrane |
|
- | |||||
| 5 | 5303206741 | Trim Clip (2) |
|
- | |||||
| 6 | 3202139 | Trim, Center Vent |
|
- | |||||
| 7 | 3202378 | Knob-timer |
|
$ 49.82 | |||||
| 8 | 3202379 | Knob-switch |
|
- | |||||
| 9 | 3016250 | Housing, Control |
|
- | |||||
| 10 | 5304409888 | Main Block Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 11 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 12 | 3204594 | Switch-terminal Cutout |
|
- | |||||
| *49121 | 5303210643 | Plate-switch Mtg. |
|
- |
