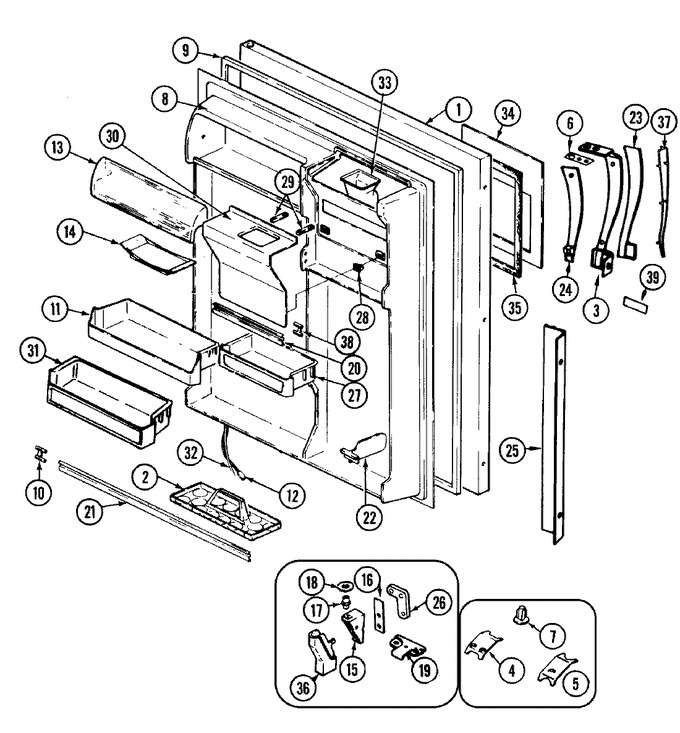

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-14-WW | Panel, Outer (wht) |
|
- | |||||
| 2 | 60066-1 | Tray, Egg |
|
- | |||||
| 3 | 69300-3 | Handle, Door |
|
- | |||||
| 4 | 65275-57 | Screw |
|
- | |||||
| 4 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 5 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 6 | 69301-1 | Shim, Handle |
|
- | |||||
| 7 | 55782-10 | Plug Button, Hdle & Door Stop |
|
- | |||||
| 8 | 65275-5 | Screw |
|
- | |||||
| 8 | 69458-2 | Liner, F.f. Door |
|
- | |||||
| 9 | 70025-8 | Gasket, F.f. Door |
|
- | |||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 11 | 69872-14 | Shelf, Pick-off |
|
- | |||||
| 12 | 69865-2 | Wire Harness, Door |
|
- | |||||
| 12 | 69862-1 | Wire Harness, Door To Main |
|
- | |||||
| 13 | 66184-363 | Door, Dairy (large) |
|
- | |||||
| 14 | 29936-2 | Tray, Butter |
|
- | |||||
| 15 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 15 | 69516-3 | Hinge, Lower (zinc) |
|
- | |||||
| 16 | 69510-1 | Shim, Lower Hinge |
|
- | |||||
| 17 | 70060-1 | Pin, Hinge |
|
- | |||||
| 18 | 67483-3 | Washer, Door Spacer |
|
Immediately | $ 45.86 | ||||
| 19 | 65275-48 | Screw |
|
- | |||||
| 19 | 69256-2 | Stop, Door |
|
- | |||||
| 20 | 68376-18 | Trim, Door Shelf |
|
- | |||||
| 21 | WP61003045 | Trim, Door Shelf (Replaces: 68375-23) |
|
$ 129.55 | |||||
| 22 | 69759-2 | Organizer |
|
- | |||||
| 23 | 68016-4 | Insert |
|
- | |||||
| 24 | 60445-3 | Insert, Handle (back) |
|
- | |||||
| 24 | 65275-53 | Screw |
|
- | |||||
| 25 | 60453-44 | Trim, F.f. Door (wht) |
|
- | |||||
| 26 | 65275-59 | Screw |
|
- | |||||
| 26 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 27 | 69872-12 | Shelf, Pick-off |
|
- | |||||
| 28 | 65184-3 | Latch |
|
- | |||||
| 29 | 52077-26 | Seal |
|
- | |||||
| 30 | 68781-1 | Insulation, Fountain Back |
|
- | |||||
| 30 | 69626-2 | Panel, Access |
|
- | |||||
| 30 | 69535-1 | Insulation, Fountain Perimeter |
|
- | |||||
| 31 | 60037-39 | Door Shelf |
|
- | |||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-11) |
|
$ 126.83 | |||||
| 33 | 69541-1 | Chute, Ice |
|
- | |||||
| 34 | 68594-2 | Escutcheon |
|
- | |||||
| 35 | 95121-1 | Tape, Escutcheon |
|
- | |||||
| 36 | 69615-1 | Holder, Beverage |
|
- | |||||
| 36 | 68978-4 | Cover, Lower Hinge (wht) |
|
- | |||||
| 36 | 65275-47 | Screw, Hinge Cover (black) |
|
- | |||||
| 37 | 68017-5 | Insert, Vinyl Clad |
|
- | |||||
| 38 | 65246-1 | Retainer |
|
$ 5.04 | |||||
| 39 | 60603-19 | Insert, Nameplate |
|
- |
