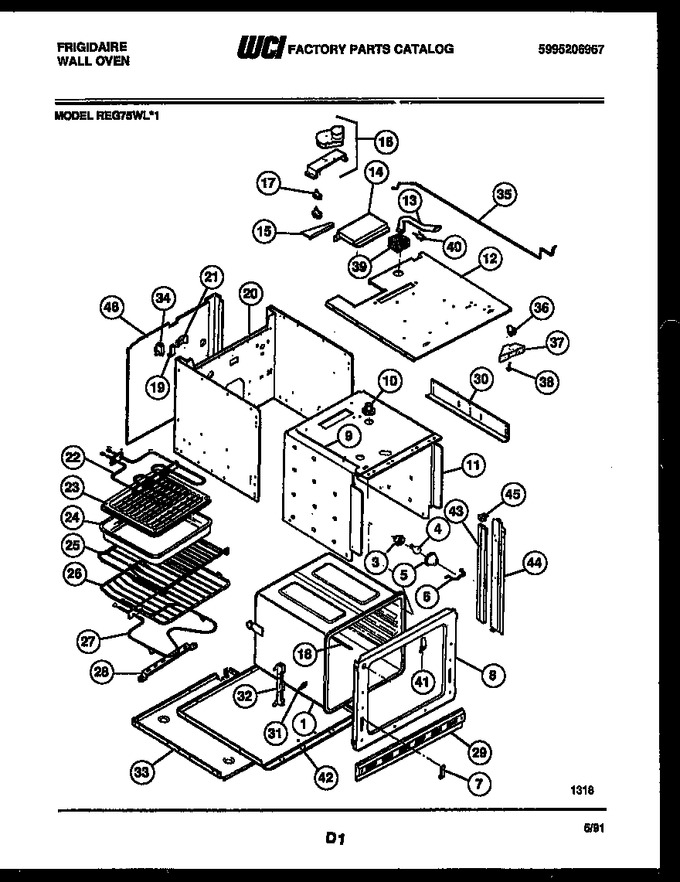

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202635 | Handle |
|
- | |||||
| 1 | 3202392 | Liner - Oven |
|
- | |||||
| 2 | 3205187 | Spacer-handle |
|
- | |||||
| 3 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 3 | 3205186 | Glass - Outer |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5303210003 | Spacer, Handle |
|
- | |||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 6 | 5303210001 | Glass - Baffle (2) |
|
- | |||||
| 7 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 8 | 3202076 | Frame - Front |
|
- | |||||
| 9 | 5303211340 | Liner - Door |
|
- | |||||
| 9 | 3202077 | Rod |
|
- | |||||
| 10 | 3206270 | Seal-oven Door |
|
- | |||||
| 10 | 3205683 | Vent - Tube Assembly |
|
- | |||||
| 11 | 3016272 | Shield - Wool |
|
- | |||||
| 11 | 5303210008 | Spacer-glass |
|
- | |||||
| 12 | 5303270123 | Screw Handle |
|
- | |||||
| 12 | 3016249 | Wrapper - Top |
|
- | |||||
| 13 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 5303211362 | Baffle - Door |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 5308003186 | Spring-door |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 3202381 | Motor - Latch Assembly |
|
- | |||||
| 16 | 5303018381 | Hinge-door |
|
$ 145.85 | |||||
| 17 | 3202393 | Switch - Door Latch (2) |
|
- | |||||
| 17 | 5303210006 | Collar - Glass |
|
- | |||||
| 18 | 3018012 | Probe - Sensor |
|
- | |||||
| 19 | 3202384 | Bracket - Switch Mtg |
|
- | |||||
| 20 | 3016275 | Wrapper |
|
- | |||||
| 21 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 22 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 23 | 3206091 | Insert - Broiler Pan |
|
- | |||||
| 24 | 3205539 | Pan, Broiler |
|
- | |||||
| 25 | 5304531722 | Rack - Off Set (Replaces: 3016282) |
|
Immediately | $ 51.05 | ||||
| 26 | 5303016315 | Rack - Regular |
|
- | |||||
| 27 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 28 | 3016248 | Support, Broil Element |
|
- | |||||
| 29 | 3202627 | Trim - Base |
|
- | |||||
| 30 | 3016278 | Support - Height Adj |
|
- | |||||
| 31 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 32 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 33 | 3016277 | Wrapper, Base |
|
- | |||||
| 34 | 3202383 | Switch |
|
- | |||||
| 35 | 3016241 | Rod |
|
- | |||||
| 36 | 3051648 | Latch |
|
- | |||||
| 37 | 3051647 | Housing, Latch |
|
- | |||||
| 38 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 39 | 3016302 | Insulation - Vent |
|
- | |||||
| 40 | 3016303 | Clip-insulation Retainer |
|
- | |||||
| 41 | 3202082 | Cover Seam |
|
- | |||||
| 42 | 3016273 | Shield, Insulation |
|
- | |||||
| 43 | 3016280 | Trim, Inner, Lh |
|
- | |||||
| 43 | 3016279 | Trim, Inner, Rh |
|
- | |||||
| 44 | 3202633 | Trim - Side Outer (2) |
|
- | |||||
| 45 | 3202632 | Trim Cap, Lh |
|
- | |||||
| 45 | 3202631 | Trim Cap, Rh |
|
- | |||||
| 46 | 3016314 | Cover, Wire |
|
- | |||||
| *45107 | 5303212886 | Tape-inner Door 45`` |
|
- | |||||
| *45107 | 3202113 | Button-spacer |
|
- | |||||
| *45107 | 3201807 | Insulation-door |
|
- | |||||
| *45112 | 5300009126 | Clip |
|
- | |||||
| *45112 | 3016313 | Button, Plug |
|
- | |||||
| *45112 | 191S018F318 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *45112 | 3016274 | Insulation, Back |
|
- | |||||
| *45112 | 3019048 | Insulation-wrap |
|
- |
