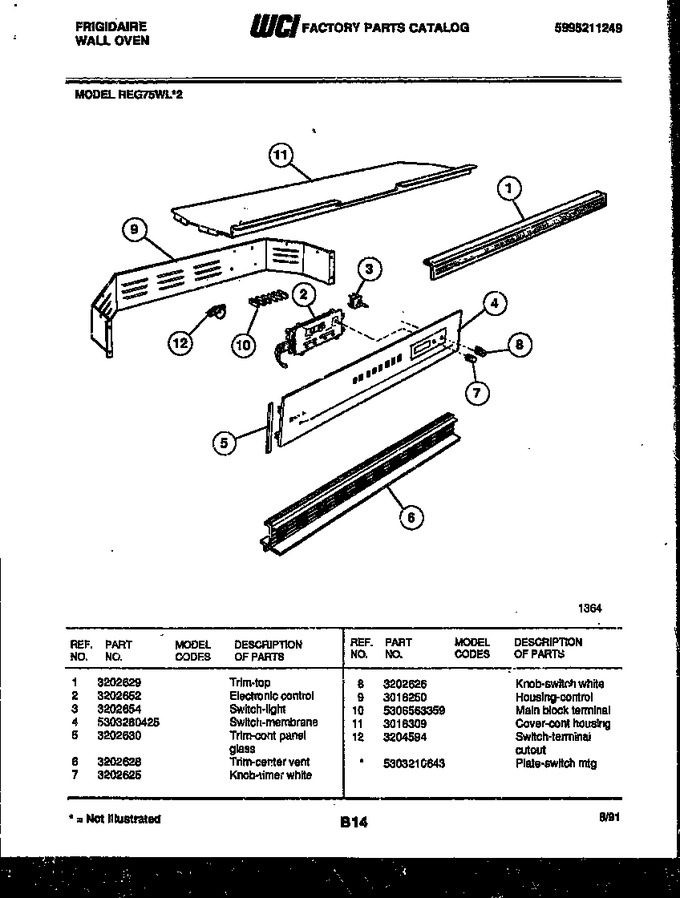

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202629 | Trim-top |
|
- | |||||
| 2 | 3202652 | Electronic Control |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 5303280425 | Switch-membrane |
|
- | |||||
| 5 | 3202630 | Trim-cont Panel Glass |
|
- | |||||
| 6 | 3202628 | Trim - Center Vent |
|
- | |||||
| 7 | 3202625 | Knob-timer White |
|
- | |||||
| 8 | 3202626 | Knob-switch White |
|
- | |||||
| 9 | 3016250 | Housing, Control |
|
- | |||||
| 10 | 5304409888 | Main Block Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 11 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 12 | 3204594 | Switch-terminal Cutout |
|
- | |||||
| *50672 | 5303210643 | Plate-switch Mtg. |
|
- |
