02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:

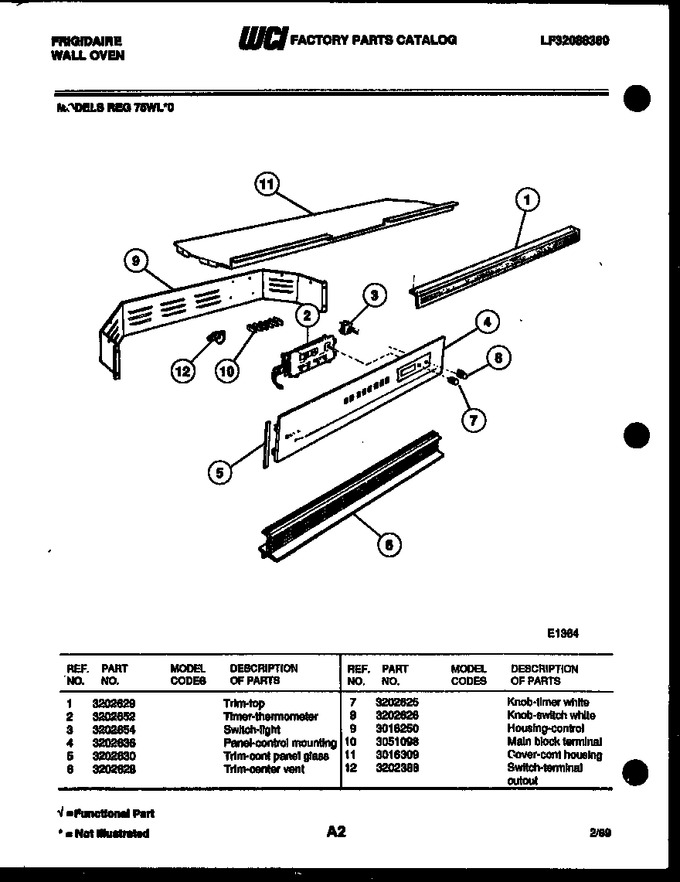

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202629 | Trim-top |
|
- | |||||
| 2 | 3202652 | Timer-thermometer |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 3202636 | Panel-control Mounting |
|
- | |||||
| 5 | 3202630 | Trim-cont Panel Glass |
|
- | |||||
| 6 | 3202628 | Trim - Center Vent |
|
- | |||||
| 7 | 3202625 | Knob-timer White |
|
- | |||||
| 8 | 3202626 | Knob-switch White |
|
- | |||||
| 9 | 3016250 | Housing, Control |
|
- | |||||
| 10 | 3051098 | Main Block Terminal |
|
- | |||||
| 11 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 12 | 318003605 | Switch-terminal Cutout (Replaces: 3202388) |
|
$ 178.61 |
