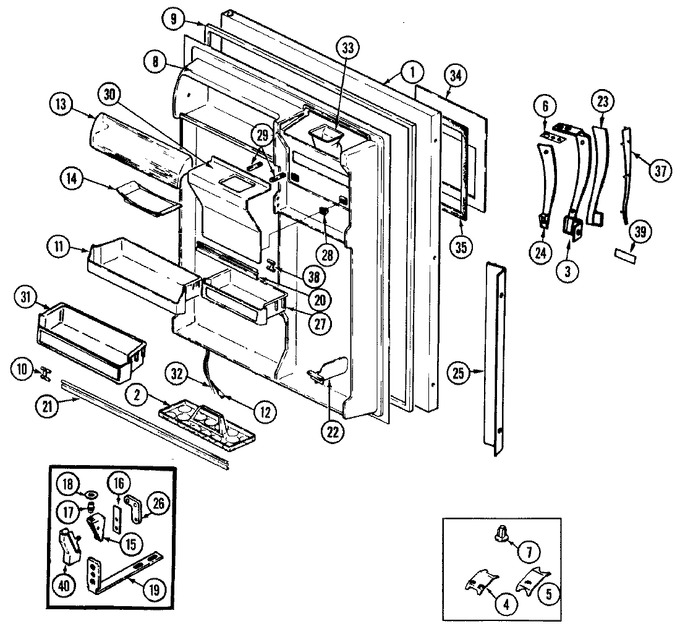

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-20-AM | Panel, F.f. Door (alm) | 11 |
|
- | ||||
| 2 | 60066-1 | Tray, Egg | 11 |
|
- | ||||
| 3 | 69300-4 | Handle, Door----na | 11 |
|
- | ||||
| 4 | 60123-2 | Clip, Stop Screw | 11 |
|
- | ||||
| 4 | 65275-57 | Screw | 11 |
|
- | ||||
| 5 | 56209-3 | Clip, Stop Screw | 11 |
|
- | ||||
| 6 | 69301-1 | Shim, Handle | 11 |
|
- | ||||
| 7 | 55782-6 | Plug Button (almond) | 11 |
|
- | ||||
| 8 | 65275-5 | Screw | 11 |
|
- | ||||
| 8 | 69458-2 | Liner, F.f. Door | 11 |
|
- | ||||
| 9 | 70025-8 | Gasket, F.f. Door | 11 |
|
- | ||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 11 |
|
$ 9.39 | ||||
| 11 | 69872-11 | Shelf, Pick-off | 11 |
|
- | ||||
| 12 | 69865-1 | Wire Harness, Door | 11 |
|
- | ||||
| 12 | 69862-1 | Wire Harness, Door To Main | 11 |
|
- | ||||
| 13 | 66184-367 | Door, Dairy | 11 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 11 |
|
- | ||||
| 15 | 65275-51 | Screw, Lower Hinge | 11 |
|
- | ||||
| 15 | 69516-1 | Hinge, Lower (blk) | 11 |
|
- | ||||
| 16 | 69510-1 | Shim, Lower Hinge | 11 |
|
- | ||||
| 17 | 70060-1 | Pin, Hinge | 11 |
|
- | ||||
| 18 | 67483-3 | Washer, Door Spacer | 11 |
|
Immediately | $ 45.86 | |||
| 19 | 65275-48 | Screw | 11 |
|
- | ||||
| 19 | 69256-2 | Stop, Door | 11 |
|
- | ||||
| 19 | 69511-1 | Tapping Plate, Lower Hinge | 11 |
|
- | ||||
| 20 | 69759-2 | Organizer | 11 |
|
- | ||||
| 21 | WP61003045 | Trim, Shelf (Replaces: 68832-63) | 11 |
|
$ 129.55 | ||||
| 22 | 69759-2 | Organizer | 11 |
|
- | ||||
| 23 | 68016-6 | Handle Insert, Front | 11 |
|
- | ||||
| 24 | 65275-53 | Screw | 11 |
|
- | ||||
| 24 | 60445-4 | Insert, Handle (back) | 11 |
|
- | ||||
| 25 | 60453-32 | Trim, F.f. Door (alm) | 11 |
|
- | ||||
| 26 | 65275-59 | Screw | 11 |
|
- | ||||
| 26 | 67874-1 | Tapping Plate, Lower Hinge | 11 |
|
- | ||||
| 27 | 69872-7 | Shelf, Pick-off | 11 |
|
- | ||||
| 28 | 65184-3 | Latch | 11 |
|
- | ||||
| 29 | 52077-26 | Seal | 11 |
|
- | ||||
| 30 | 69535-1 | Insulation, Fountain Perimeter | 11 |
|
- | ||||
| 30 | 68781-1 | Insulation, Fountain Back | 11 |
|
- | ||||
| 30 | 69626-2 | Panel, Access | 11 |
|
- | ||||
| 31 | 69872-10 | Shelf, Pick-off | 11 |
|
- | ||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-11) | 11 |
|
$ 126.83 | ||||
| 33 | 69541-1 | Chute, Ice | 11 |
|
- | ||||
| 34 | 68594-6 | Escutcheon (alm) | 11 |
|
- | ||||
| 35 | 95121-1 | Tape, Escutcheon | 11 |
|
- | ||||
| 37 | 68017-3 | Insert, Vinyl Clad | 11 |
|
- | ||||
| 38 | 65246-1 | Retainer | 11 |
|
$ 5.04 | ||||
| 39 | 60603-20 | Insert Nameplate | 11 |
|
- | ||||
| 40 | 69615-1 | Holder, Beverage | 11 |
|
- | ||||
| 40 | 65275-47 | Screw, Hinge Cover (black) | 11 |
|
- | ||||
| 40 | 68978-1 | Cover, Lower Hinge (blk) | 11 |
|
- |
