02 - Control Panel
03 - Door Parts
04 - Body Parts
05 - Body Parts
06 - Door Parts
New Model Search:

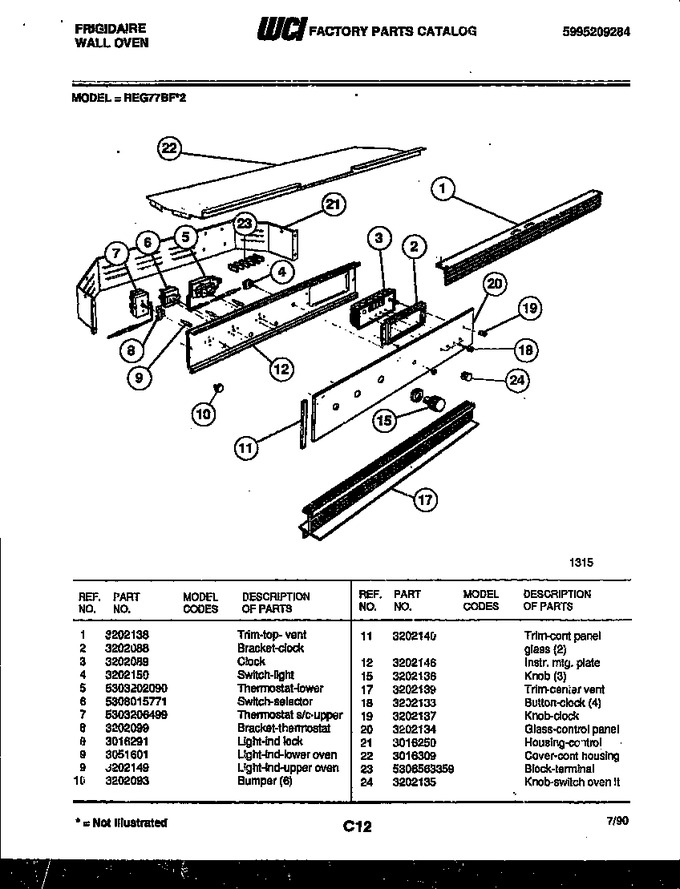

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202138 | Trim-top-vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202150 | Switch-light |
|
- | |||||
| 5 | 5303202090 | Thermostat-lower |
|
- | |||||
| 6 | 5308015771 | Switch-selector |
|
- | |||||
| 7 | 5303206499 | Thermostat S/c-upper |
|
- | |||||
| 8 | 3202099 | Bracket-thermostat |
|
- | |||||
| 9 | 3051601 | Light-ind-lower Oven |
|
- | |||||
| 9 | 3202149 | Light-ind. (upper Oven) |
|
- | |||||
| 9 | 3016291 | Light-ind. Lock |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim-cont Panel Glass (2) |
|
- | |||||
| 12 | 3202146 | Instr. Mtg. Plate |
|
- | |||||
| 15 | 3202136 | Knob (3) |
|
$ 167.04 | |||||
| 17 | 3202139 | Trim, Center Vent |
|
- | |||||
| 18 | 3202133 | Button-clock (4) |
|
- | |||||
| 19 | 3202137 | Knob-clock |
|
- | |||||
| 20 | 3202134 | Glass-control Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3202135 | Knob-switch Oven Lt |
|
$ 48.67 |
