Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 68238-3 Rail, Cantilever Shelf 11 Appelez-nous -
1 68238-2 Rail, Cantilever Shelf 11 Appelez-nous -
1 68238-1 Rail, Cantilever Shelf 11 Appelez-nous -
1 400037-28 Screw 11 Appelez-nous -
2 60570-41 Frame, Shelf 11 Appelez-nous -
3 68139-14 Glass Cantilever Shelf 11 Appelez-nous -
4 60524-42 Trim Shelf 11 Appelez-nous -
5 65276-36 Trim, Rear-1/2 Shelf 11 Appelez-nous -
6 66333-2 Clip 11 Appelez-nous -
7 68285-6 Cover, Air Tunnel 11 Appelez-nous -
8 68282-1 Bellows, Air Tunnel 11 Appelez-nous -
9 68289-4 Insulation, Air Tunnel 11 Appelez-nous -
10 W11233072 Screw   (Replaces: 400015-31) 11 In-Stock Immediately $ 12.62

10 68290-3 Damper, Air Tunnel 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

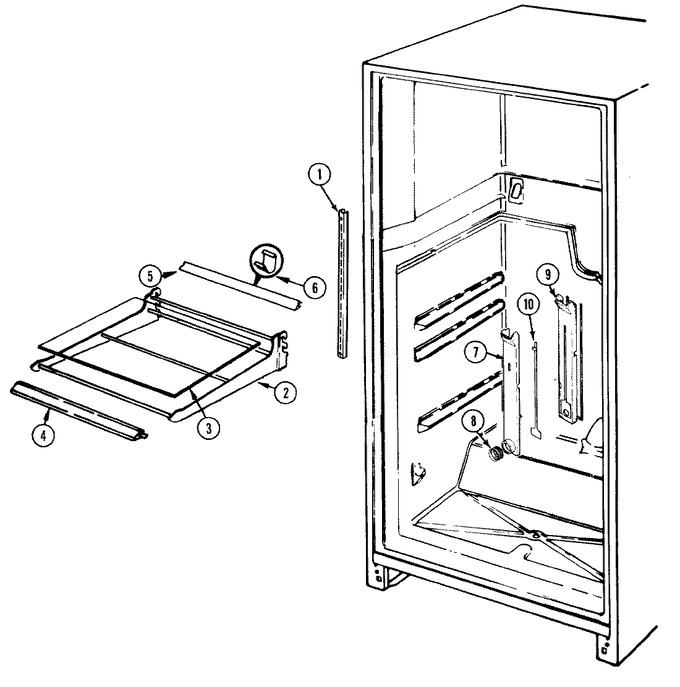

Diagram for RB234RDV
