Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131695 Knob-top Valve (4) Appelez-nous -
2 5303273241 Trim-manifold Appelez-nous -
3 3131891 Glass Control Pnl Appelez-nous -
4 3131445 Cap-end Manifold-lh Appelez-nous -
5 3205300 Dial Top Valve (4) Appelez-nous -
6 3131492 Cap-end Manifold-rh Appelez-nous -
7 5303271609 Support-main Top (2) Appelez-nous -
8 3051354 Trim, Main Top, Lh Appelez-nous -
9 3051355 Trim, Main Top (rh) Appelez-nous -
10 3934050 Main-top (almond) Appelez-nous -
10 3934051 Main-top (white) Appelez-nous -
11 08067746 Brkt-main Top Hinge Lh Appelez-nous -
12 08067747 Brkt-main Top Hinge Rh Appelez-nous -
13 3131299 Pan-burner (4) Appelez-nous -
14 3018432 Grate (4) Appelez-nous -
*53386 3206266 Retainer Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

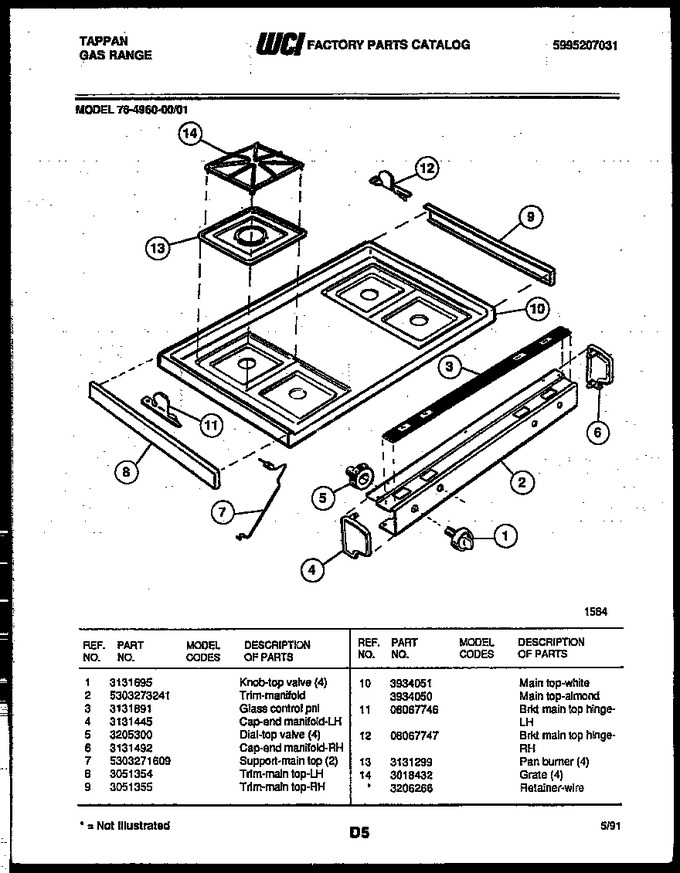

Diagram for 76-4960-00-01
