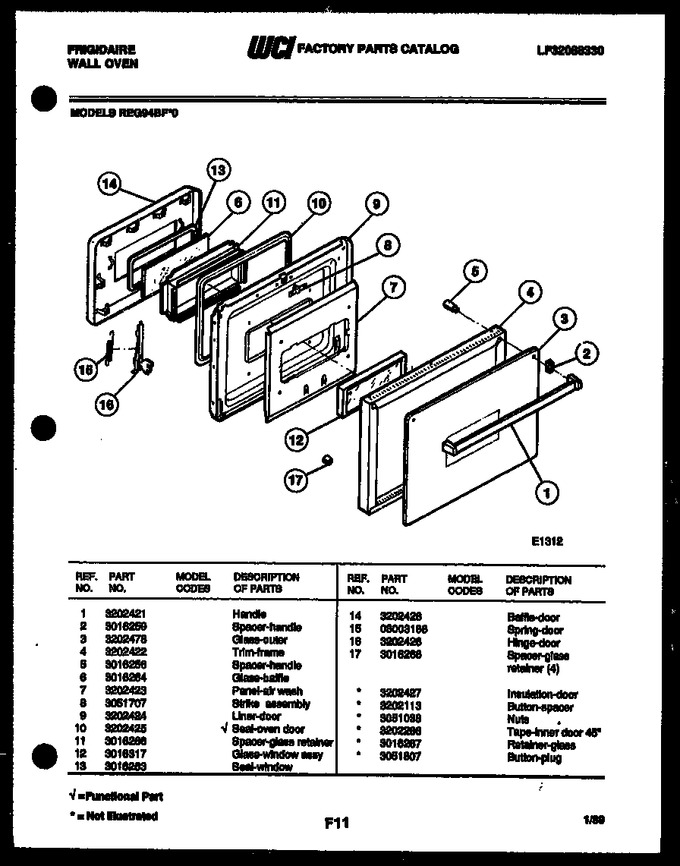

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202421		Handle		Appelez-nous	-
2	3016259		Spacer-handle		Appelez-nous	-
3	3202478		Glass-outer		Appelez-nous	-
4	3202422		Trim-frame		Appelez-nous	-
5	3016256		Spacer-handle		Appelez-nous	-
6	3016264		Glass-baffle		Appelez-nous	-
7	3202423		Panel-air Wash		Appelez-nous	-
8	3051707		Strike Assembly		Appelez-nous	-
9	3202424		Liner-door		Appelez-nous	-
10	3202425		Seal-oven Door		Appelez-nous	-
11	3016266		Spacer-glass Retainer		Appelez-nous	-
12	3016317		Glass - Window Assy		Appelez-nous	-
13	3016263		Seal - Window				$ 66.15
14	3202428		Baffle-door		Appelez-nous	-
15	08003186		Spring-door		Appelez-nous	-
16	3202426		Hinge-door		Appelez-nous	-
17	3016266		Spacer - Glass Retainer (4)		Appelez-nous	-
*94426	3202427		Insulation-door		Appelez-nous	-
*94430	3202113		Button-spacer		Appelez-nous	-
*94436	3051038		Nuts		Appelez-nous	-
*94440	3202266		Tape - Inner Door 45``		Appelez-nous	-
*94444	3016267		Retainer-glass		Appelez-nous	-
*94448	3051807		Button Plug		Appelez-nous	-
