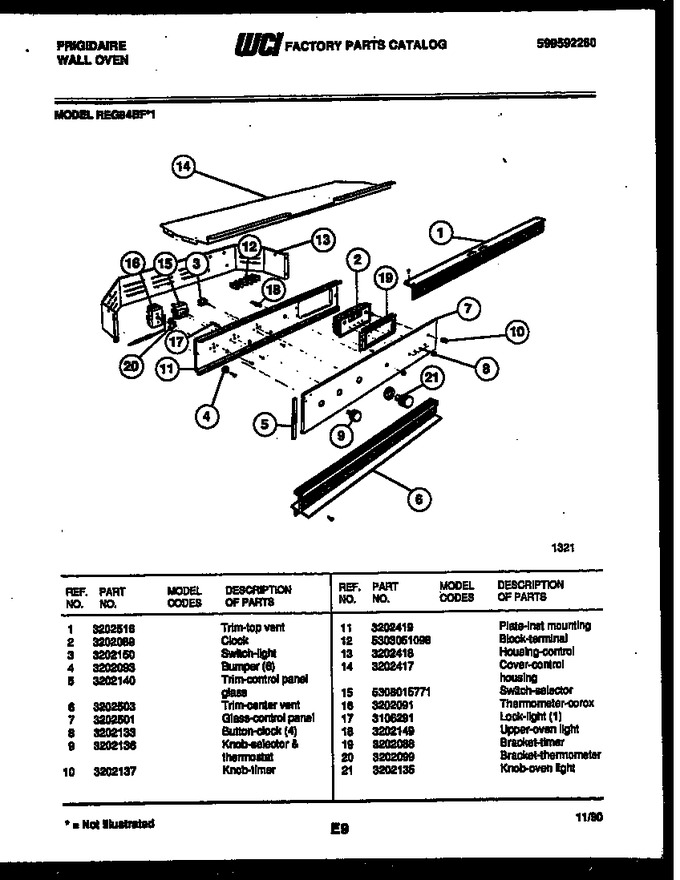

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202516 | Trim-top Vent |
|
- | |||||
| 2 | 3202089 | Clock |
|
- | |||||
| 3 | 3202150 | Switch-light |
|
- | |||||
| 4 | 3202093 | Bumper (6) |
|
- | |||||
| 5 | 3202140 | Trim-control Panel Glass |
|
- | |||||
| 6 | 3202503 | Trim-center Vent |
|
- | |||||
| 7 | 3202501 | Glass-control Panel |
|
- | |||||
| 8 | 3202133 | Button-clock (4) |
|
- | |||||
| 9 | 3202136 | Knob-selector & Thermostat |
|
$ 167.04 | |||||
| 10 | 3202137 | Knob, Timer |
|
- | |||||
| 11 | 3202419 | Plate-inst Mounting |
|
- | |||||
| 12 | 5303051098 | Block - Terminal |
|
- | |||||
| 13 | 3202418 | Housing-control |
|
- | |||||
| 14 | 3202417 | Cover-control Housing |
|
- | |||||
| 15 | 5308015771 | Switch-selector |
|
- | |||||
| 16 | 3202091 | Thermometer-corox |
|
- | |||||
| 17 | 3106291 | Lock-light (1) |
|
- | |||||
| 18 | 3202149 | Upper-oven Light |
|
- | |||||
| 19 | 3202088 | Bracket-timer |
|
- | |||||
| 20 | 3202099 | Bracket-thermometer |
|
- | |||||
| 21 | 3202135 | Knob-oven Light |
|
$ 48.67 |
