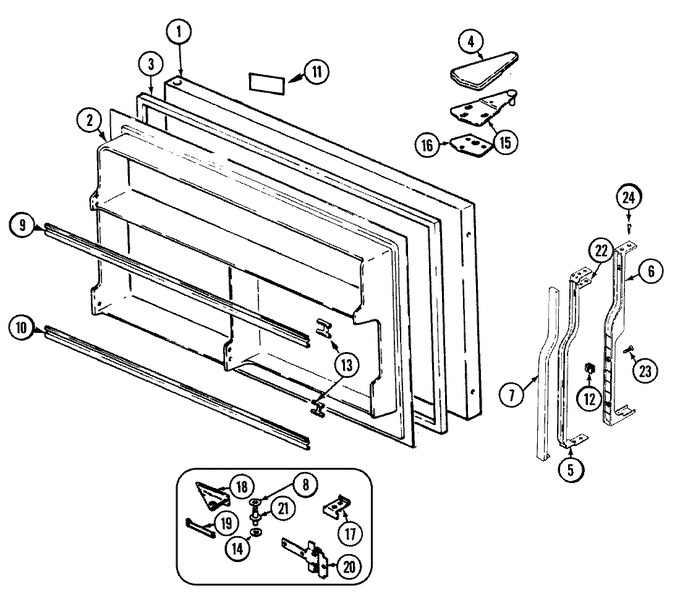

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72342-104-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 1 | 56144-9 | Plug Button, Hinge Screw (alm) | 10 |
|
- | ||||
| 2 | 69472-1 | Liner, Frz. Door | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 3 | 70025-7 | Gasket, Door | 10 |
|
- | ||||
| 4 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 5 | 70052-4 | Frame, Handle | 10 |
|
- | ||||
| 6 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 6 | 70050-1 | Handle, Frz. Door (chr) | 10 |
|
- | ||||
| 7 | 70053-9 | Insert, Handle (alm) | 10 |
|
- | ||||
| 8 | 67483-6 | Washer | 10 |
|
- | ||||
| 9 | WP70111-108 | Trim, Shelf (12``) (Replaces: 70111-114) | 10 |
|
Immediately | $ 104.35 | |||
| 10 | WP70111-108 | Trim, Shelf (13 7/8``) (Replaces: 70111-118) | 10 |
|
Immediately | $ 104.35 | |||
| 11 | 66982-32 | Nameplate (alm) | 10 |
|
- | ||||
| 12 | 69743-1 | Grommet |
|
- | |||||
| 13 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 14 | 54233-1 | Washer | 10 |
|
$ 7.71 | ||||
| 15 | 53709-20 | Hinge, Upper | 10 |
|
- | ||||
| 15 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 16 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 17 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 17 | 65275-48 | Screw | 10 |
|
- | ||||
| 18 | 65275-62 | Screw | 10 |
|
- | ||||
| 18 | 69514-2 | Hinge, Center | 10 |
|
- | ||||
| 19 | 69515-1 | Shim, Center Hinge | 10 |
|
- | ||||
| 20 | 69419-1 | Tapping Plate, Center Hinge | 10 |
|
- | ||||
| 20 | 65275-61 | Screw | 10 |
|
- | ||||
| 21 | 69517-2 | Pin, Center Hinge | 10 |
|
- | ||||
| 22 | 67934-1 | Shim, Handle | 10 |
|
- | ||||
| 23 | 415033-1 | Screw | 10 |
|
- | ||||
| 24 | W10856122 | Screw (Replaces: 65275-80) | 10 |
|
$ 6.98 |
