SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:

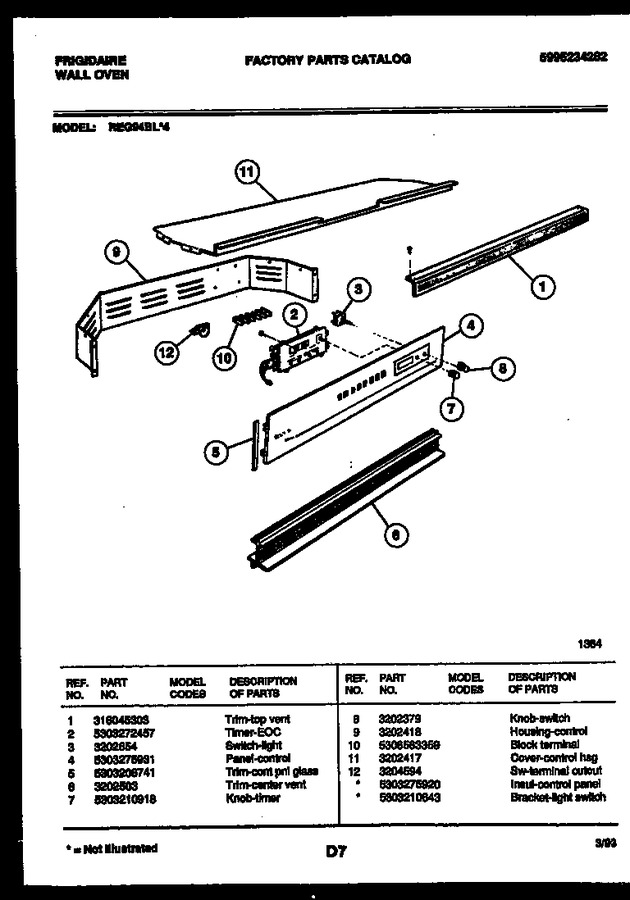

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045303 | Trim-top Vent |
|
- | |||||
| 2 | 5303272457 | Timer-eoc |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 5303275931 | Panel-control |
|
- | |||||
| 5 | 5303206741 | Trim-cont Pnl Glass |
|
- | |||||
| 6 | 3202503 | Trim-center Vent |
|
- | |||||
| 7 | 5303210918 | Knob-timer |
|
- | |||||
| 8 | 3202379 | Knob-switch |
|
- | |||||
| 9 | 3202418 | Housing-control |
|
- | |||||
| 10 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 11 | 3202417 | Cover-control Hsg |
|
- | |||||
| 12 | 3204594 | Sw-terminal Cutout |
|
- | |||||
| *73952 | 5303210643 | Bracket-light Switch |
|
- | |||||
| *73952 | 5303275920 | Insul-control Panel |
|
- |
