02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:

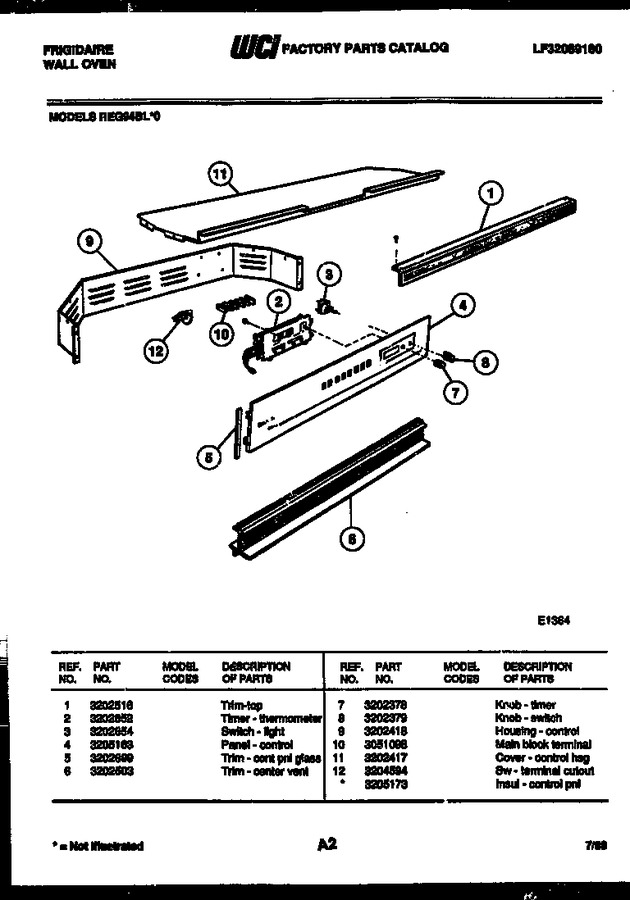

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202516 | Trim-top |
|
- | |||||
| 2 | 3202652 | Timer-thermometer |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 3205163 | Panel - Control |
|
- | |||||
| 5 | 3202699 | Trim - Cont Pnl Glass |
|
- | |||||
| 6 | 3202503 | Trim-center Vent |
|
- | |||||
| 7 | 3202378 | Knob-timer |
|
$ 49.82 | |||||
| 8 | 3202379 | Knob-switch |
|
- | |||||
| 9 | 3202418 | Housing-control |
|
- | |||||
| 10 | 3051098 | Main Block Terminal |
|
- | |||||
| 11 | 3202417 | Cover-control Hsg |
|
- | |||||
| 12 | 3204594 | Sw-terminal Cutout |
|
- | |||||
| *98533 | 3205173 | Insul - Control Pnl |
|
- |
