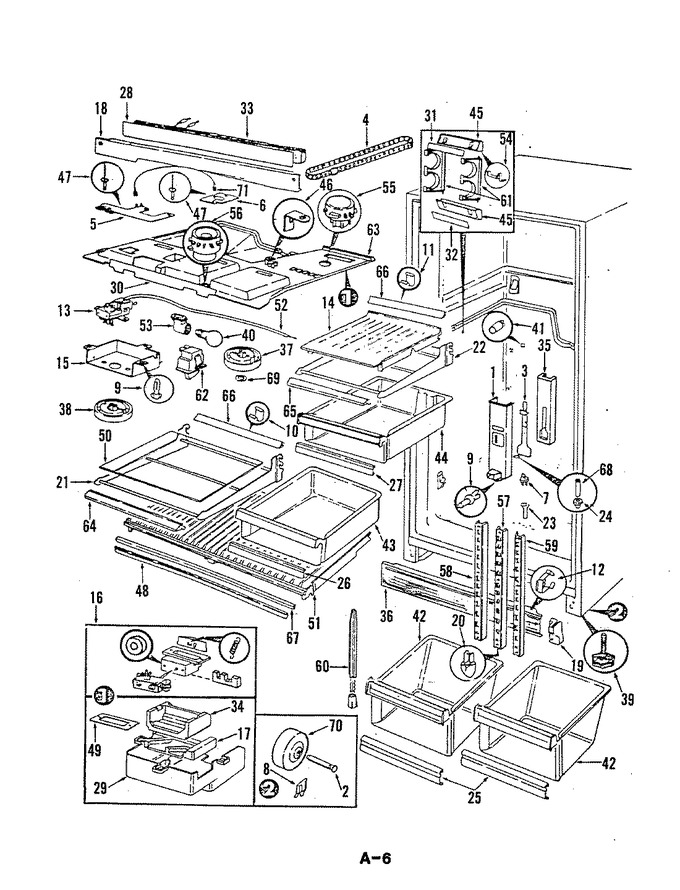

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Fresh Food Door


04 - Unit Compartment & System


05 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60662-2		Mt Kpr Tunnel		Appelez-nous	-
2	29835-2		Pin, Wheel		Appelez-nous	-
3	60093-2		Damper, Air Tunnel		Appelez-nous	-
4	60679-1		Belt		Appelez-nous	-
5	60147-1		Bracket, Control		Appelez-nous	-
6	60147-2		Bracket, Light Socket		Appelez-nous	-
7	65039-1		Cap, Drain Tube		Appelez-nous	-
8	60216-1		Clip		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	65358-1		Clip		Appelez-nous	-
11	65358-2		Clip		Appelez-nous	-
12	60100-1		Clip, Kickplate				$ 5.85
13	52881-50		Control, Temperature		Appelez-nous	-
14	60075-6		Cover, Meat Pan		Appelez-nous	-
15	60083-1		Cover, Temperature Control		Appelez-nous	-
16	60681-1		Damper Control		Appelez-nous	-
17	60659-1		Insulation		Appelez-nous	-
18	65797-3-AM		Divider, Mullion (alm)		Appelez-nous	-
19	60381-1		End Cap		Appelez-nous	-
20	60131-6		Foil Switch, Reflector		Appelez-nous	-
20	60340-1		End Cap, Center Rail		Appelez-nous	-
21	60570-4		Frame, Shelf		Appelez-nous	-
22	60570-11		Frame, Shelf		Appelez-nous	-
23	54531-8		Grommet		Appelez-nous	-
24	55512-1		Grommet		Appelez-nous	-
25	60132-59		Handle		Appelez-nous	-
26	60132-61		Handle		Appelez-nous	-
27	60132-55		Handle		Appelez-nous	-
28	60105-9		Heater Wire		Appelez-nous	-
29	60661-1		Damper Housing		Appelez-nous	-
30	60571-36		Insert		Appelez-nous	-
31	65753-3		Insert		Appelez-nous	-
32	65753-7		Insert		Appelez-nous	-
33	60140-3		Insulation		Appelez-nous	-
34	60658-1		Insulation		Appelez-nous	-
35	60660-1		Insulation		Appelez-nous	-
36	60138-17		Kickplate		Appelez-nous	-
37	60061-7		Knob		Appelez-nous	-
38	60061-8		Knob		Appelez-nous	-
39	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
40	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
41	19530-36		Nylon Nut		Appelez-nous	-
42	60457-224		Pan, Crisper		Appelez-nous	-
43	60466-205		Pan, Meat		Appelez-nous	-
44	60466-204		Pan, Meat		Appelez-nous	-
45	56519-4		Rack, Wine		Appelez-nous	-
46	60680-1		Belt Retainer		Appelez-nous	-
47	405012-1		Screw		Appelez-nous	-
47	400037-1		Screw		Appelez-nous	-
47	WP3196163		Screw   (Replaces: 402068-103)				$ 6.26
47	9986-117		Screw		Appelez-nous	-
47	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
47	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
47	402039-4		Screw		Appelez-nous	-
47	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
47	406013-1		Screw		Appelez-nous	-
48	60148-6		Seal		Appelez-nous	-
49	212643		Permagum   (Replaces: 62888-8)			Immediately	$ 73.92
49	65620-1		Seal		Appelez-nous	-
50	65598-4		Glass Shelf		Appelez-nous	-
51	60019-8		Shelf, Crisper		Appelez-nous	-
52	4008-12		Plastic Tube		Appelez-nous	-
53	60577-1		Socket, Light		Appelez-nous	-
54	58057-1		Spring, Wine Rack		Appelez-nous	-
55	60665-1		Damper Sprocket		Appelez-nous	-
56	60664-1		Knob Sprocket		Appelez-nous	-
57	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
58	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
59	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
60	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
61	65689-1		Support, Wine Rack		Appelez-nous	-
62	55732-3		Switch		Appelez-nous	-
63	65765-1		Top, F.f. Compartment		Appelez-nous	-
64	60524-5		Trim		Appelez-nous	-
65	60414-6		Trim		Appelez-nous	-
66	65276-7		Trim, Rear		Appelez-nous	-
67	60454-3		Trim		Appelez-nous	-
68	55513-3		Tube		Appelez-nous	-
69	420092-900		Washer, Spring		Appelez-nous	-
70	29834-2		Wheel		Appelez-nous	-
71	60560-3		Wire Harness		Appelez-nous	-
71	29675-28		Ground Wire		Appelez-nous	-
71	29675-22		Ground Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
