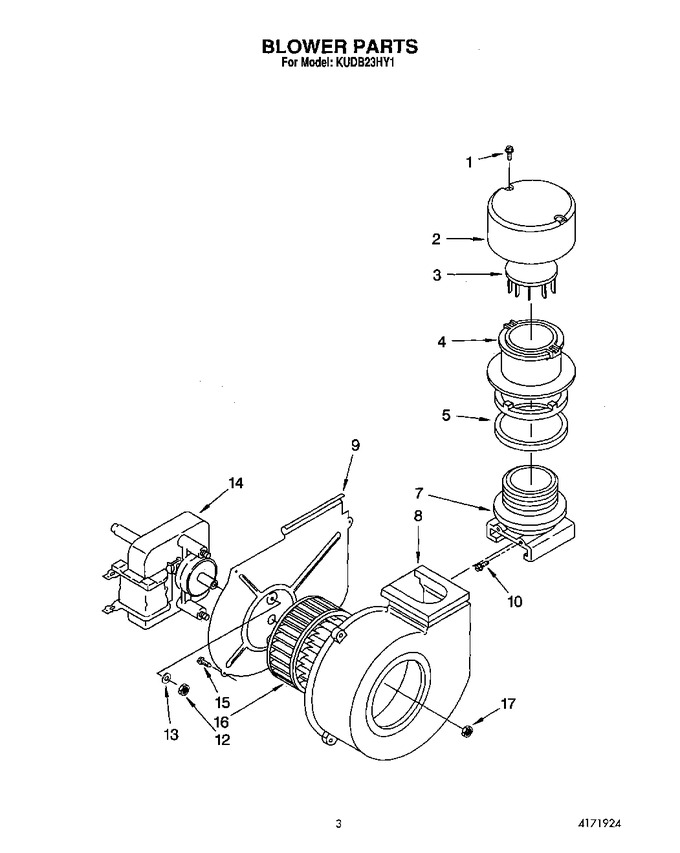

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4159436 | Screw, 6-32 X 7/8 |
|
- | |||||
| 2 | 4162482 | Cap, Air Inlet |
|
- | |||||
| 3 | 4162485 | Damper, Air Inlet |
|
- | |||||
| 4 | 4162483 | Tube, Air Inlet |
|
- | |||||
| 5 | 4162481 | Seal, Air Inlet |
|
- | |||||
| 7 | 9740989 | Support, Blower |
|
- | |||||
| 8 | 4162487 | Housing, Blower |
|
- | |||||
| 9 | 9740961 | Plate, Motor Mounting |
|
- | |||||
| 10 | 9740973 | Screw, No.8-18 |
|
- | |||||
| 12 | 4159071 | Nut, 6-32 Hex |
|
- | |||||
| 13 | 4159491 | Lockwasher |
|
- | |||||
| 14 | 9740267 | Motor, Blower |
|
- | |||||
| 15 | 4171131 | Screw, 6 X 1/2 |
|
- | |||||
| 16 | 4162499 | Blower Wheel Assembly (includes Item 17) |
|
- | |||||
| 17 | 9740265 | Nut |
|
- |
