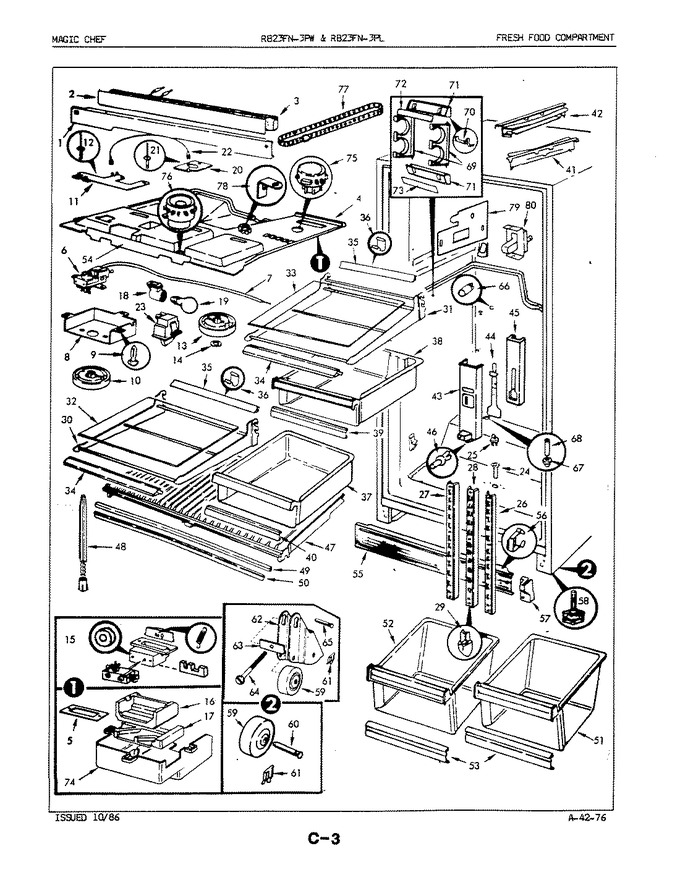

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-3-WW		Divider, Mullion (wht)		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
3	65274-1		Wire Harness		Appelez-nous	-
4	65765-2		Top, F.f. Compartment		Appelez-nous	-
5	65620-1		Seal		Appelez-nous	-
6	52881-50		Control, Temperature		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
7	4008-12		Plastic Tube		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	60061-7		Knob		Appelez-nous	-
10	WP3196163		Screw   (Replaces: 402068-103)				$ 6.26
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-8		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	62888-4		Sealer		Appelez-nous	-
15	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
15	60681-1		Damper Control		Appelez-nous	-
16	60658-1		Insulation		Appelez-nous	-
17	60659-1		Insulation		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	29675-22		Ground Wire		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-28		Ground Wire		Appelez-nous	-
23	60131-6		Foil Switch, Reflector		Appelez-nous	-
23	55732-3		Switch		Appelez-nous	-
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	400037-28		Screw		Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
29	60340-1		End Cap, Center Rail		Appelez-nous	-
30	60570-11		Frame, Shelf		Appelez-nous	-
31	60570-11		Frame, Shelf		Appelez-nous	-
32	65598-4		Glass Shelf		Appelez-nous	-
33	65598-20		Glass Shelf		Appelez-nous	-
34	60524-5		Trim		Appelez-nous	-
35	65276-7		Trim, Rear		Appelez-nous	-
36	66333-1		Clip, Shelf Trim		Appelez-nous	-
37	66518-1		Pan, Meat		Appelez-nous	-
38	66517-2		Pan, Meat		Appelez-nous	-
39	60132-74		Handle		Appelez-nous	-
40	60132-74		Handle		Appelez-nous	-
41	66410-2		Slide Rail		Appelez-nous	-
42	66442-2		Rail		Appelez-nous	-
43	60662-1		Mt Kpr Tunnel		Appelez-nous	-
44	60093-2		Damper, Air Tunnel		Appelez-nous	-
45	60660-1		Insulation		Appelez-nous	-
46	28013-2		Rivet, Air Tunnel		Appelez-nous	-
47	60019-8		Shelf, Crisper		Appelez-nous	-
48	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
49	60454-3		Trim		Appelez-nous	-
50	60148-6		Seal		Appelez-nous	-
51	60457-268		Pan, Crisper		Appelez-nous	-
52	60457-272		Pan, Crisper		Appelez-nous	-
53	60132-73		Handle		Appelez-nous	-
54	60571-42		Insert		Appelez-nous	-
55	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
55	60138-26		Kickplate		Appelez-nous	-
56	60100-1		Clip, Kickplate				$ 5.85
57	402039-4		Screw		Appelez-nous	-
57	60381-2		End Cap		Appelez-nous	-
58	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
59	29834-2		Wheel		Appelez-nous	-
60	29835-2		Pin, Wheel		Appelez-nous	-
61	60216-1		Clip		Appelez-nous	-
62	59100-1		Bracket, Adjusting Wheel		Appelez-nous	-
63	59101-1		Tapping Plate, Wheel		Appelez-nous	-
64	406087-1		Bolt		Appelez-nous	-
65	64965-1		Pin, Wheel		Appelez-nous	-
66	19530-36		Nylon Nut		Appelez-nous	-
67	55512-1		Grommet		Appelez-nous	-
68	55513-3		Tube		Appelez-nous	-
69	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
69	56519-4		Rack, Wine		Appelez-nous	-
70	58057-1		Spring, Wine Rack		Appelez-nous	-
71	65689-1		Support, Wine Rack		Appelez-nous	-
72	65753-3		Insert		Appelez-nous	-
73	65753-7		Insert		Appelez-nous	-
74	60661-1		Damper Housing		Appelez-nous	-
74	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
75	60665-1		Damper Sprocket		Appelez-nous	-
76	60664-1		Knob Sprocket		Appelez-nous	-
77	60679-1		Belt		Appelez-nous	-
78	60680-1		Belt Retainer		Appelez-nous	-
78	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
79	60583-1		Bracket, Switch		Appelez-nous	-
80	60585-1		Switch, Mullion Heater		Appelez-nous	-
80	9986-112		Screw		Appelez-nous	-
