02 - Backguard


03 - Door Parts


04 - Body Parts


05 - Cooktop Parts


06 - Drawer Parts


07 - Broiler Parts

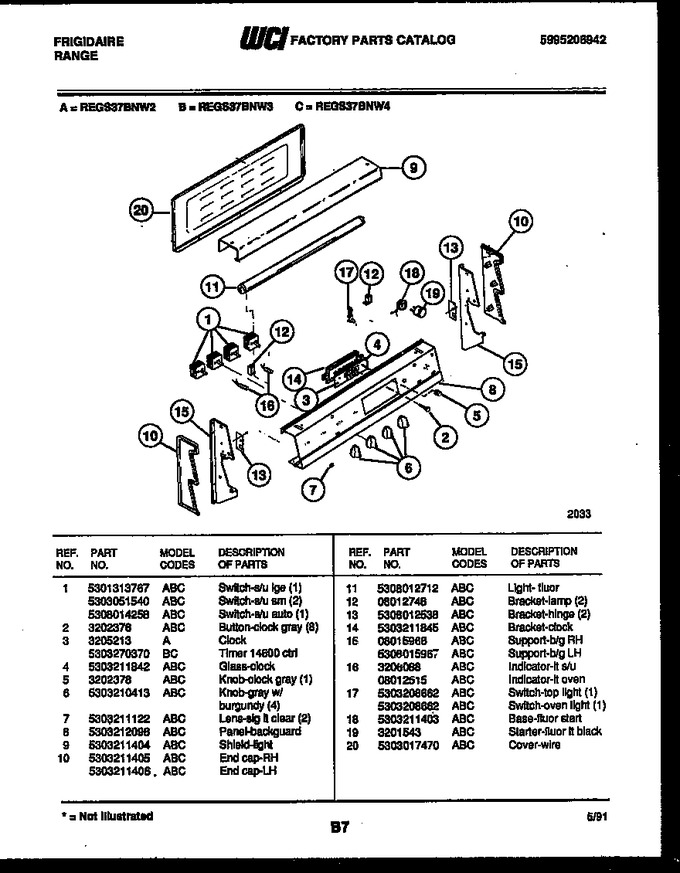

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5301313767		Switch-s/u Lge (1)		Appelez-nous	-
2	3202376		Button - Clock (gray) (8)		Appelez-nous	-
3	3205213		Clock		Appelez-nous	-
4	5303211842		Glass-clock				$ 105.11
5	3202378		Knob-clock Gray (1)				$ 49.82
6	5303210413		Knob-gray W/ Burgundy (4)		Appelez-nous	-
7	5303211122		Lens-sig Lt Clear (2)		Appelez-nous	-
8	5303212098		Panel-backguard		Appelez-nous	-
9	5303211404		Shield - Light		Appelez-nous	-
10	5303211405		End Cap-rh		Appelez-nous	-
11	5308012712		Light, Fluor.		Appelez-nous	-
12	08012748		Bracket, Lamp (2)		Appelez-nous	-
13	5308012538		Bracket, Hinge (2)		Appelez-nous	-
14	5303211845		Bracket-clock		Appelez-nous	-
15	08015966		Support-b/g Rh		Appelez-nous	-
16	3206088		Indicator-lt S/u		Appelez-nous	-
17	5303208662		Switch-top Light (1)		Appelez-nous	-
18	5303211403		Base-fluor Start		Appelez-nous	-
19	3201543		Starter-fluor Lt Black		Appelez-nous	-
20	5303017470		Cover, Wire.		Appelez-nous	-
10A	5303211406		End Cap-lh		Appelez-nous	-
15A	5308015967		Support-b/g Lh		Appelez-nous	-
16A	08012515		Indicator-lt Oven		Appelez-nous	-
17A	5303208662		Switch-oven Light (1)		Appelez-nous	-
1A	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
1B	5308014258		Switch-s/u Auto (1)		Appelez-nous	-
