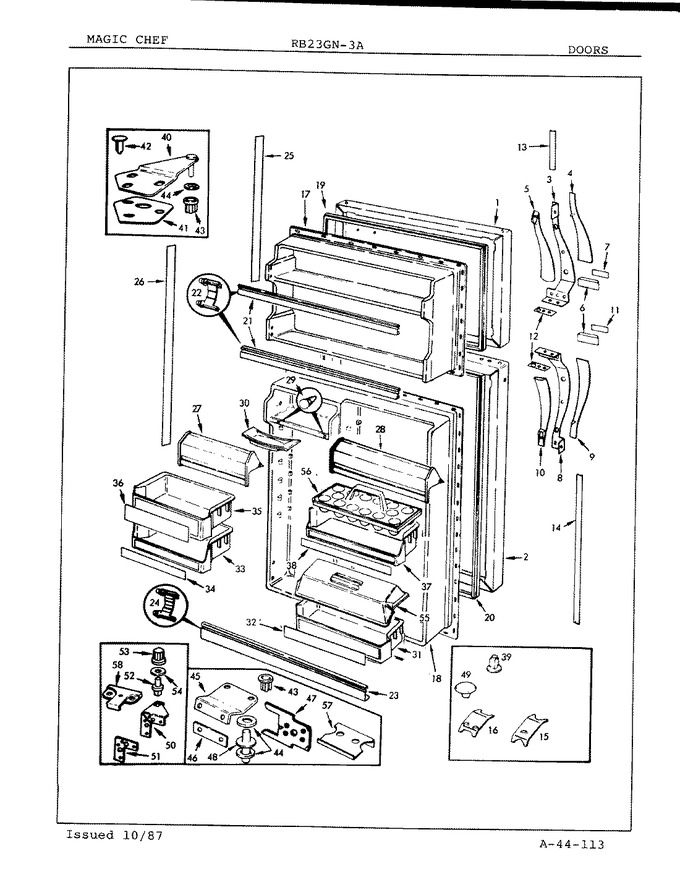

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60033-12-AM | Outer Panel |
|
- | |||||
| 2 | RA95056-1 | Door Insulation Kit |
|
- | |||||
| 2 | 60032-58-AM | Outer Panel |
|
- | |||||
| 3 | 60491-1 | Door Handle |
|
- | |||||
| 4 | 60489-3 | Insert |
|
- | |||||
| 5 | 9986-112 | Screw |
|
- | |||||
| 5 | 60490-1 | Insert |
|
- | |||||
| 6 | 60487-1 | Bezel |
|
- | |||||
| 7 | 60533-9 | Insert |
|
- | |||||
| 8 | 60491-2 | Door Handle |
|
- | |||||
| 9 | 60489-4 | Insert |
|
- | |||||
| 10 | 60490-2 | Insert |
|
- | |||||
| 11 | 60533-10 | Insert |
|
- | |||||
| 11 | 401005-12 | Screw |
|
- | |||||
| 12 | 60488-2 | Shim |
|
- | |||||
| 13 | 60554-2 | Handle Ext |
|
- | |||||
| 14 | 60554-1 | Handle Ext |
|
- | |||||
| 15 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 16 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 16 | 9986-122 | Screw |
|
- | |||||
| 17 | 65936-4 | Liner, Door |
|
- | |||||
| 18 | 65275-5 | Screw |
|
- | |||||
| 18 | 66526-3 | Inner Panel |
|
- | |||||
| 19 | 66199-7 | Gasket, Door |
|
- | |||||
| 20 | 66199-8 | Gasket, Door |
|
- | |||||
| 21 | WP61003045 | Trim, Door Shelf (Replaces: 65151-177) |
|
$ 129.55 | |||||
| 22 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 23 | 60080-51 | Trim |
|
- | |||||
| 24 | 65246-1 | Retainer |
|
$ 5.04 | |||||
| 25 | 65773-14 | Trim |
|
- | |||||
| 26 | 65773-15 | Trim |
|
- | |||||
| 27 | 66184-438 | Door, Dairy |
|
- | |||||
| 28 | 66184-440 | Door, Dairy |
|
- | |||||
| 29 | 28272-6 | Bumper, Door |
|
- | |||||
| 30 | 29936-2 | Tray, Butter |
|
- | |||||
| 31 | 60037-39 | Door Shelf |
|
- | |||||
| 32 | 60572-41 | Insert |
|
- | |||||
| 33 | 60037-37 | Shelf, Pick-off |
|
- | |||||
| 34 | 60572-39 | Insert |
|
- | |||||
| 35 | 60037-35 | Door Shelf |
|
- | |||||
| 36 | 60572-37 | Insert |
|
- | |||||
| 37 | 60037-40 | Door Shelf |
|
- | |||||
| 38 | 60572-42 | Insert |
|
- | |||||
| 39 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 40 | 53709-18 | Door Hinge, Upper |
|
- | |||||
| 41 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 42 | 56144-9 | Plug Button, Hinge Screw (alm) |
|
- | |||||
| 43 | 66036-1 | Bushing,top/center Hinge |
|
- | |||||
| 44 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 44 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 45 | 60031-2 | Door Hinge, Center |
|
- | |||||
| 46 | 60034-1 | Spacer, Center Hinge |
|
- | |||||
| 47 | 60622-1 | Tapping Plate |
|
- | |||||
| 47 | 9987-107 | Screw, Center Hinge Mtg |
|
- | |||||
| 48 | 60035-4 | Pin, Center Hinge |
|
- | |||||
| 49 | 56186-6 | Plug Button, (almond) |
|
- | |||||
| 50 | 403062-5 | Screw |
|
- | |||||
| 50 | 60630-8 | Door Hinge, Lower |
|
- | |||||
| 51 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 52 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 53 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 54 | 54233-2 | Washer |
|
- | |||||
| 55 | 66515-4 | Egg Cover |
|
- | |||||
| 56 | 60066-1 | Tray, Egg |
|
- | |||||
| 57 | 60030-1 | Door Stop |
|
- | |||||
| 58 | 9986-108 | Screw |
|
- | |||||
| 58 | 60419-1 | Door Stop |
|
- |
