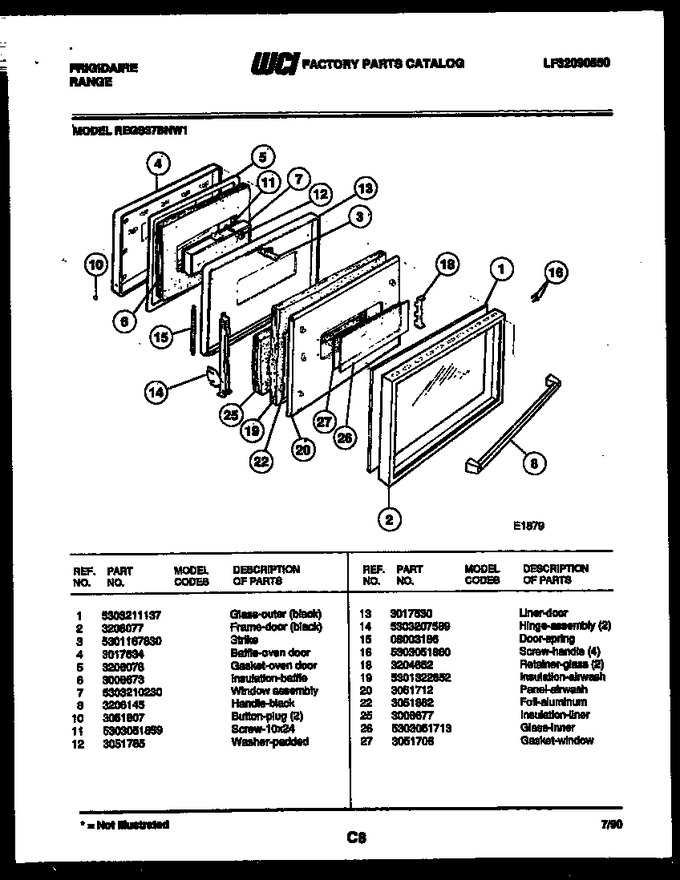

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303211137		Glass-outer (black)		Appelez-nous	-
2	3206077		Frame-door (black)		Appelez-nous	-
3	5301167830		Strike		Appelez-nous	-
4	3017634		Baffle, Oven Door		Appelez-nous	-
5	3206078		Gasket, Oven Door		Appelez-nous	-
6	3008673		Insulation, Baffle		Appelez-nous	-
7	5303210230		Window-assembly		Appelez-nous	-
8	3206145		Handle-black		Appelez-nous	-
10	3051807		Button, Plug (2)		Appelez-nous	-
11	5303051859		Screw 10 X 24		Appelez-nous	-
12	3051785		Washer, Padded		Appelez-nous	-
13	3017530		Liner, Door		Appelez-nous	-
14	5303207589		Hinge-assembly (2)		Appelez-nous	-
15	08003186		Door - Spring		Appelez-nous	-
16	5303051860		Screw, Handle (4)		Appelez-nous	-
18	3204652		Retainer, Glass (2)		Appelez-nous	-
19	5301322652		Insulation, Airwash		Appelez-nous	-
20	3051712		Panel, Airwash		Appelez-nous	-
22	3051862		Foil, Aluminum		Appelez-nous	-
25	3008677		Insulation, Liner		Appelez-nous	-
26	5303051713		Glass, Inner		Appelez-nous	-
27	3051706		Gasket, Window		Appelez-nous	-
