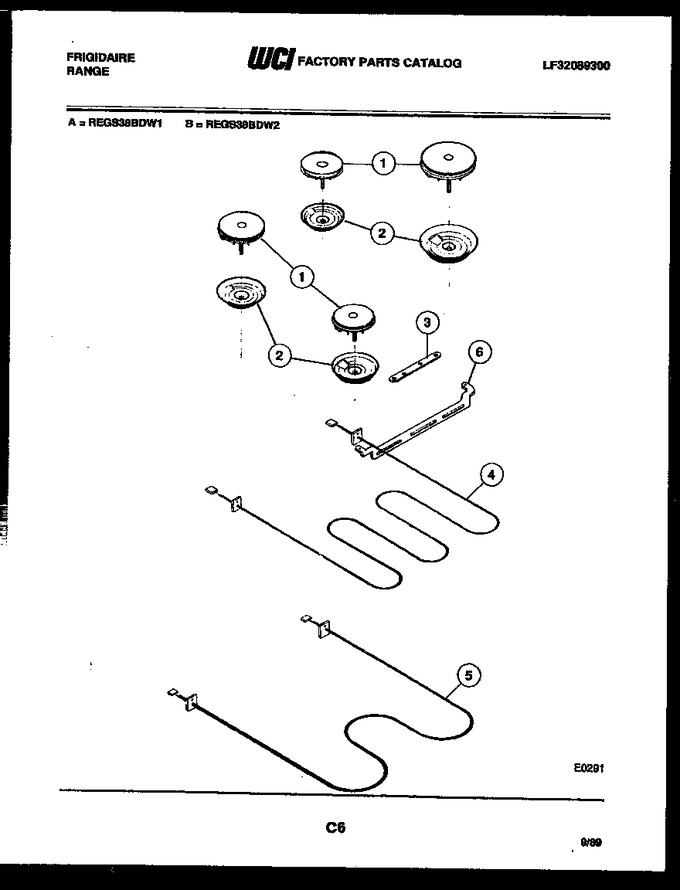

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014251 | Surface Unit - Auto |
|
- | |||||
| 1 | 08014263 | Surface Unit Large |
|
- | |||||
| 1 | 08014249 | Surface Unit-small (2) |
|
- | |||||
| 2 | 08014252 | Pan - Large |
|
- | |||||
| 2 | 08014253 | Pan-auto |
|
- | |||||
| 2 | 08014264 | Pan-small (2) |
|
- | |||||
| 3 | 08014254 | Strap - Anti Turn (4) |
|
- | |||||
| 4 | 08002856 | Element - Broil |
|
- | |||||
| 5 | 08002858 | Element - Bake |
|
- | |||||
| 6 | 08002857 | Support-broil Element |
|
- | |||||
| *13144 | 08016255 | Cleaner-s/u |
|
- |
