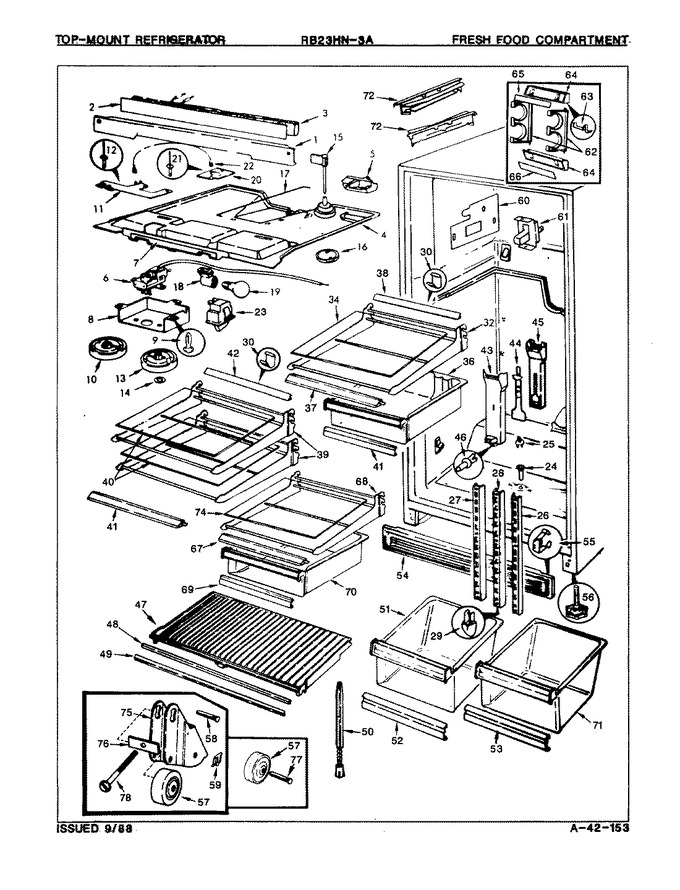

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-3-AM		Divider, Mullion (alm)		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
3	60560-2		Wire Harness		Appelez-nous	-
4	60085-56		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	60571-43		Insert		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	60061-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	66609-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
27	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
29	60340-1		End Cap, Center Rail		Appelez-nous	-
30	66333-1		Clip, Shelf Trim		Appelez-nous	-
31	66517-2		Pan, Meat		Appelez-nous	-
32	60132-74		Handle		Appelez-nous	-
33	68139-7		Glass Shelf		Appelez-nous	-
34	66813-2		Slide Rail,meat & Deli Pan		Appelez-nous	-
35	66814-2		Rail, Meat Pan (rt)		Appelez-nous	-
36	60570-11		Frame, Shelf		Appelez-nous	-
37	68136-11		Trim		Appelez-nous	-
38	65276-7		Trim, Rear		Appelez-nous	-
39	60570-11		Frame, Shelf		Appelez-nous	-
40	68139-5		Glass Shelf		Appelez-nous	-
41	68136-11		Trim		Appelez-nous	-
42	65276-7		Trim, Rear		Appelez-nous	-
43	60094-12		Tunnel		Appelez-nous	-
44	60093-2		Damper, Air Tunnel		Appelez-nous	-
45	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
46	28013-2		Rivet, Air Tunnel		Appelez-nous	-
47	66832-1		Shelf, Crisper		Appelez-nous	-
48	60454-3		Trim		Appelez-nous	-
49	60148-6		Seal		Appelez-nous	-
50	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
51	60457-468		Pan, Crisper		Appelez-nous	-
52	60132-73		Handle		Appelez-nous	-
53	60132-73		Handle		Appelez-nous	-
54	60138-30		Kickplate		Appelez-nous	-
54	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
55	60100-1		Clip, Kickplate				$ 5.85
56	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
57	29834-2		Wheel		Appelez-nous	-
58	29835-2		Pin, Wheel		Appelez-nous	-
59	60216-1		Clip		Appelez-nous	-
60	60583-1		Bracket, Switch		Appelez-nous	-
61	60585-1		Switch, Mullion Heater		Appelez-nous	-
61	9986-117		Screw		Appelez-nous	-
62	56519-4		Rack, Wine		Appelez-nous	-
63	58057-1		Spring, Wine Rack		Appelez-nous	-
63	60319-3		Anchor		Appelez-nous	-
64	65689-1		Support, Wine Rack		Appelez-nous	-
65	65753-3		Insert		Appelez-nous	-
66	65753-7		Insert		Appelez-nous	-
67	68136-11		Trim		Appelez-nous	-
68	60570-11		Frame, Shelf		Appelez-nous	-
69	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
69	60132-74		Handle		Appelez-nous	-
70	66518-1		Pan, Meat		Appelez-nous	-
71	60457-472		Pan, Crisper		Appelez-nous	-
72	66813-2		Slide Rail,meat & Deli Pan		Appelez-nous	-
73	66814-2		Rail, Meat Pan (rt)		Appelez-nous	-
74	68139-7		Glass Shelf		Appelez-nous	-
75	59100-1		Bracket, Adjusting Wheel		Appelez-nous	-
76	59101-1		Tapping Plate, Wheel		Appelez-nous	-
77	64965-1		Pin, Wheel		Appelez-nous	-
78	406087-1		Bolt		Appelez-nous	-
