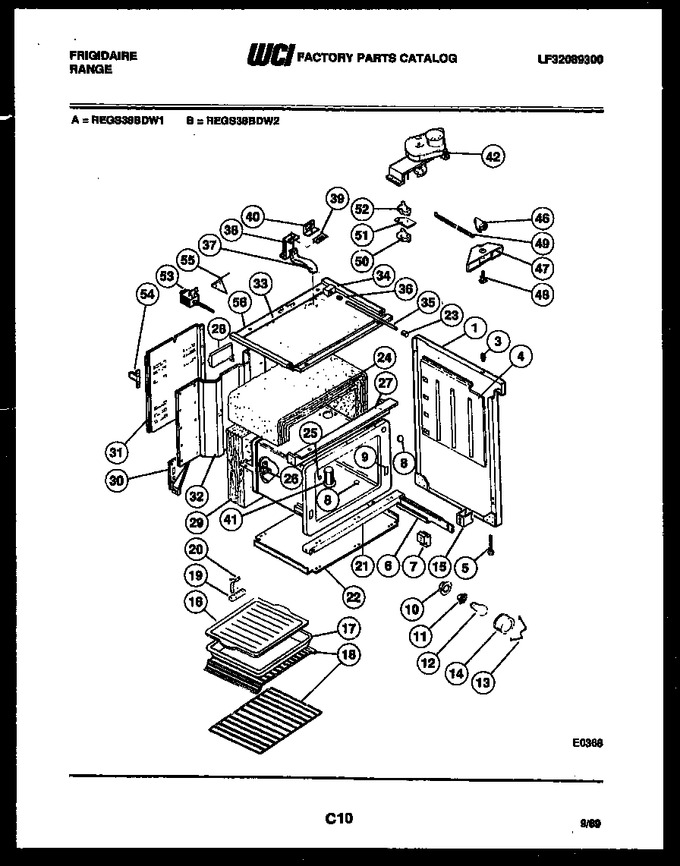

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012527 | Side Panel-rh White |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 4 | 08012235 | Retainer-insulation (2) |
|
- | |||||
| 5 | 08003583 | Screw-leveling |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 08003103 | Guide - Drawer Front |
|
- | |||||
| 8 | 08003144 | Plug-button 3/4`` (2) |
|
- | |||||
| 9 | 08017081 | Oven Liner |
|
- | |||||
| 10 | 08011088 | Cup - Oven Light |
|
- | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 08000171 | Light Bulb |
|
- | |||||
| 13 | 08011087 | Retainer - Lens |
|
- | |||||
| 14 | 08011084 | Lens-oven Light |
|
- | |||||
| 15 | 08011055 | Spacer-drawer Rail (2) |
|
- | |||||
| 16 | 08005314 | Grille - Broiler |
|
- | |||||
| 17 | 08005315 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | 08003146 | Strap - Ground |
|
- | |||||
| 21 | 08002872 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3017394 | Panel - Bottom |
|
- | |||||
| 23 | 08067758 | Cover - Rod End |
|
$ 2.31 | |||||
| 24 | 08013680 | Insulation-oven Wrap |
|
- | |||||
| 25 | 08013144 | Plug-button-therm Bulb Hole |
|
- | |||||
| 26 | 08017097 | Probe-oven Temp |
|
- | |||||
| 27 | 08008324 | Channel-oven Support Upper |
|
- | |||||
| 28 | 08015742 | Channel - Air |
|
- | |||||
| 29 | 08013680 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Wire Cover |
|
- | |||||
| 32 | 3017798 | Back-range |
|
- | |||||
| 33 | K005025704 | Panel, Subtop |
|
- | |||||
| 34 | 3017799 | Switch-door |
|
- | |||||
| 35 | 08007445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 08014259 | Vent-tube Upper |
|
- | |||||
| 38 | 08014260 | Bracket - Vent Tube |
|
- | |||||
| 39 | 08014261 | Gasket-oven Vent Tube |
|
- | |||||
| 40 | 3017800 | Bracket-door Latch Switch |
|
- | |||||
| 41 | 08012752 | Vent Tube |
|
- | |||||
| 42 | 08015743 | Motor-latch |
|
- | |||||
| 46 | 08015744 | Latch-door |
|
- | |||||
| 47 | 08008696 | Housing-door Latch |
|
- | |||||
| 48 | 08003095 | Axle |
|
- | |||||
| 49 | 08015748 | Tie Bar |
|
- | |||||
| 50 | 08003092 | Switch - Lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 3007889 | Switch - Upper |
|
- | |||||
| 53 | 08017094 | Thermostat-limit |
|
- | |||||
| 54 | 08015752 | Ballast |
|
- | |||||
| 55 | 08017098 | Insulator-thermostat |
|
- | |||||
| 56 | 08015993 | Channel - Sub Top |
|
- | |||||
| 18A | 08014219 | Rack-offset |
|
- | |||||
| 1A | 08012528 | Side Panel-lh White |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 6A | 08015747 | Rail - Drawer Lh |
|
- |
