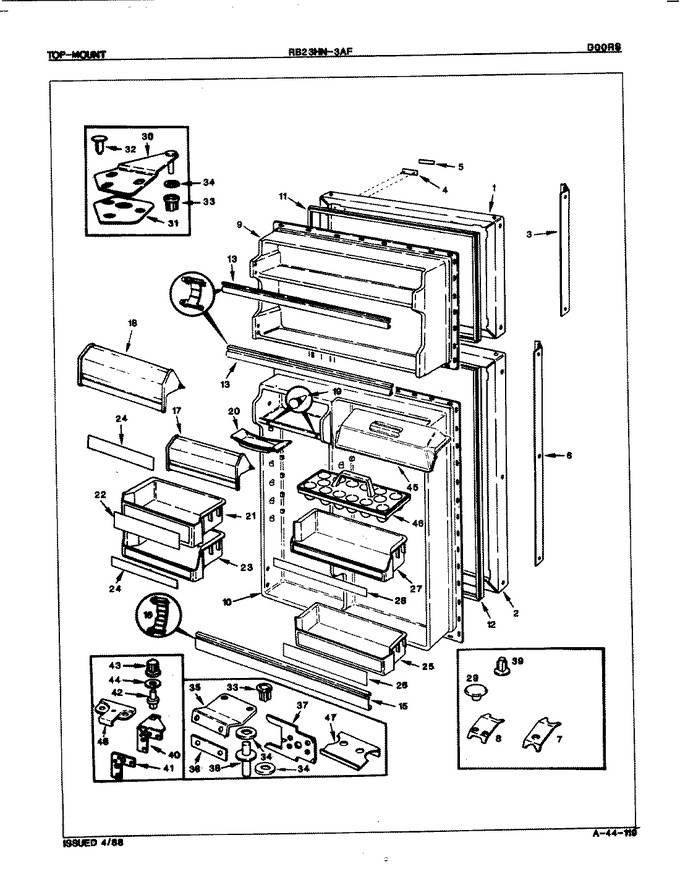

SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66666-1-AM		Outer Panel		Appelez-nous	-
2	66672-1-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	65211-1		Retainer, Nameplate		Appelez-nous	-
3	66706-2		Door Handle		Appelez-nous	-
4	66986-5		Bezel, Nameplate		Appelez-nous	-
5	66982-2		Insert		Appelez-nous	-
6	66704-2		Door Handle		Appelez-nous	-
6	401005-12		Screw		Appelez-nous	-
7	56209-2		Clip		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	65936-4		Liner, Door		Appelez-nous	-
10	66526-3		Inner Panel		Appelez-nous	-
10	65275-5		Screw		Appelez-nous	-
11	66199-7		Gasket, Door		Appelez-nous	-
12	66199-8		Gasket, Door		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-177)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	60080-51		Trim		Appelez-nous	-
16	65246-1		Retainer				$ 5.04
17	66184-438		Door, Dairy		Appelez-nous	-
18	66184-440		Door, Dairy		Appelez-nous	-
19	28272-6		Bumper, Door		Appelez-nous	-
20	29936-2		Tray, Butter		Appelez-nous	-
21	60037-39		Door Shelf		Appelez-nous	-
22	60572-41		Insert		Appelez-nous	-
23	60037-37		Shelf, Pick-off		Appelez-nous	-
24	60572-39		Insert		Appelez-nous	-
25	60037-35		Door Shelf		Appelez-nous	-
26	60572-37		Insert		Appelez-nous	-
27	60037-40		Door Shelf		Appelez-nous	-
28	60572-42		Insert		Appelez-nous	-
29	55782-6		Plug Button (almond)		Appelez-nous	-
30	53709-18		Door Hinge, Upper		Appelez-nous	-
31	65031-1		Shim, Upper Hinge		Appelez-nous	-
32	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
33	66036-1		Bushing,top/center Hinge		Appelez-nous	-
34	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
34	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
35	60031-2		Door Hinge, Center		Appelez-nous	-
36	60034-1		Spacer, Center Hinge		Appelez-nous	-
37	60622-1		Tapping Plate		Appelez-nous	-
37	9987-107		Screw, Center Hinge Mtg		Appelez-nous	-
38	60035-4		Pin, Center Hinge		Appelez-nous	-
39	56186-6		Plug Button, (almond)		Appelez-nous	-
40	60630-8		Door Hinge, Lower		Appelez-nous	-
40	403062-5		Screw		Appelez-nous	-
41	60626-1		Shim, Lower Hinge		Appelez-nous	-
42	53672-1		Pin, Lower Hinge		Appelez-nous	-
43	66034-1		Bushing, Lower Hinge				$ 19.76
44	54233-2		Washer		Appelez-nous	-
45	66515-4		Egg Cover		Appelez-nous	-
46	60066-1		Tray, Egg		Appelez-nous	-
47	60030-2		Door Stop		Appelez-nous	-
48	9986-108		Screw		Appelez-nous	-
48	60419-1		Door Stop		Appelez-nous	-
48	66690-1		Trim Perimeter, Refrig. (side)		Appelez-nous	-
48	66692-1		Trim Perimeter, Frzr (side)		Appelez-nous	-
48	66695-1		Trim		Appelez-nous	-
48	66698-1		Trim		Appelez-nous	-
48	66698-2		Trim		Appelez-nous	-
