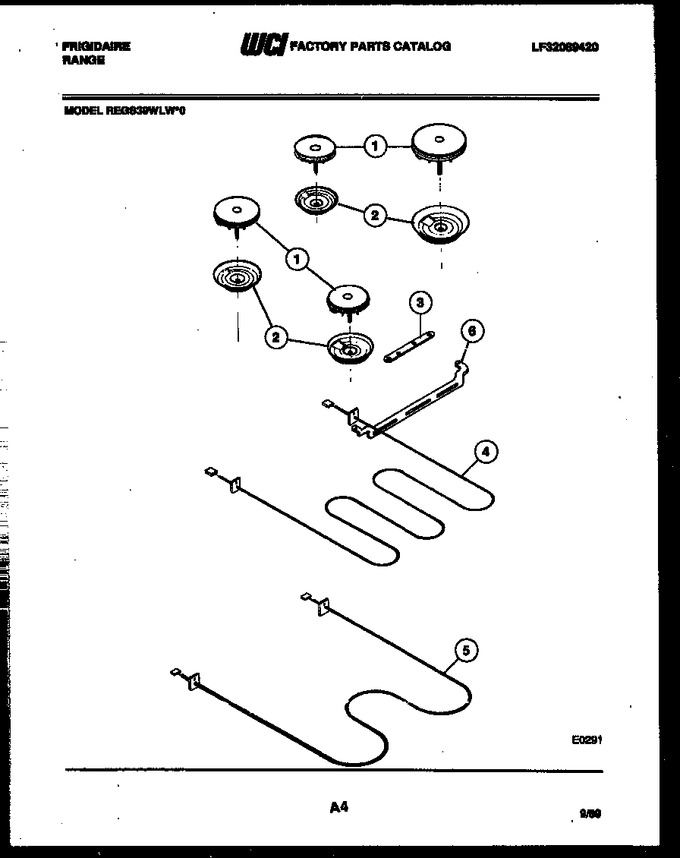

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014249 | Surface Unit-small (2) |
|
- | |||||
| 2 | 3051662 | Pan-small (2) |
|
- | |||||
| 3 | 3051620 | Strap-antl Turn (4) |
|
- | |||||
| 4 | 08002856 | Element - Broil |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 08002857 | Support-broil Element |
|
- | |||||
| 1A | 08014263 | Surface Unit Large |
|
- | |||||
| 1B | 08014251 | Surface Unit - Auto |
|
- | |||||
| 2A | 3051664 | Pan-large |
|
- | |||||
| 2B | K005129701 | Pan - Auto |
|
- |
