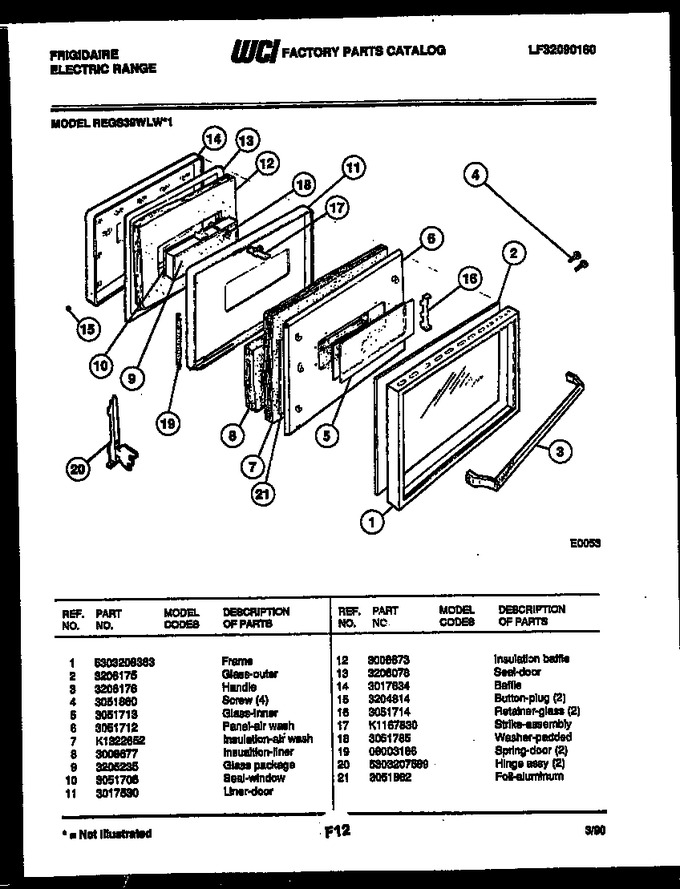

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208363		Frame		Appelez-nous	-
2	3206175		Glass-outer		Appelez-nous	-
3	3206176		Handle		Appelez-nous	-
4	3051860		Screw (4)		Appelez-nous	-
5	3051713		Glass - Inner		Appelez-nous	-
6	3051712		Panel, Airwash		Appelez-nous	-
7	K1322652		Insulation, Airwash		Appelez-nous	-
8	3008677		Insulation, Liner		Appelez-nous	-
9	3205235		Glass, Package		Appelez-nous	-
10	3051706		Seal Window		Appelez-nous	-
11	3017530		Liner, Door		Appelez-nous	-
12	3008673		Insulation, Baffle		Appelez-nous	-
13	3206078		Seal-door		Appelez-nous	-
14	3017634		Baffle		Appelez-nous	-
15	3204814		Button, Plug (2)		Appelez-nous	-
16	3051714		Retainer, Glass (2)		Appelez-nous	-
17	K1167830		Strike-assembly		Appelez-nous	-
18	3051785		Washer, Padded		Appelez-nous	-
19	08003186		Spring-door (2)		Appelez-nous	-
20	5303207589		Hinge, Assy (2)		Appelez-nous	-
21	3051862		Foil, Aluminum		Appelez-nous	-
