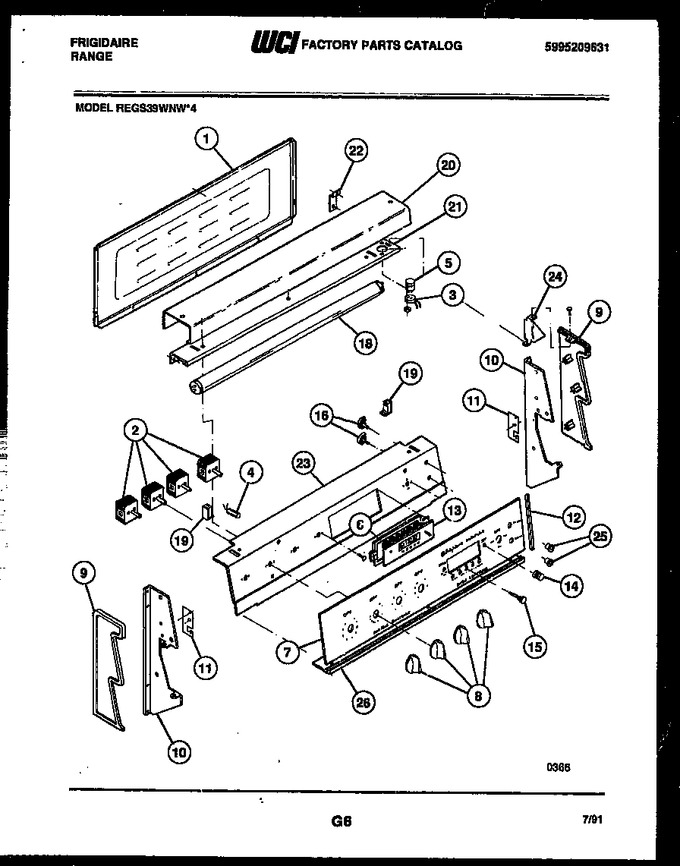

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303015702 | Switch S/u Small (2) |
|
- | |||||
| 3 | 3201542 | Base-fluor Light Starter |
|
- | |||||
| 4 | 08017085 | Ind Lite - Oven |
|
- | |||||
| 5 | 3206218 | Starter-fluor Light |
|
$ 54.08 | |||||
| 6 | 3206118 | Bracket-clock Mtg |
|
- | |||||
| 7 | 5303211913 | Panel - Control - Glass |
|
- | |||||
| 8 | 3206170 | Knobs (4) White/plum |
|
- | |||||
| 9 | 08015975 | End Cap, Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 3206174 | Trim - Cont Panel (2) White |
|
- | |||||
| 13 | 5303270370 | Electronic Control |
|
- | |||||
| 14 | 3202625 | Knob - Clock White |
|
- | |||||
| 15 | 3203026 | Button - Clock (8) White |
|
- | |||||
| 16 | 5303211969 | Switch - Fluor Light & Oven Light (2) |
|
- | |||||
| 18 | 5308012712 | Bulb-fluor |
|
- | |||||
| 19 | 08012748 | Holder-fluor Light (2) |
|
- | |||||
| 20 | 3206172 | Shield-light |
|
- | |||||
| 21 | 08017089 | Top-backguard |
|
- | |||||
| 22 | 08017090 | Hinge-light Shield, (2) |
|
- | |||||
| 23 | 3017796 | Bracket-cont. Mounting |
|
- | |||||
| 24 | 3017797 | Support-end Cap (2) |
|
- | |||||
| 25 | 3206171 | Bezel - Switch (2) White |
|
- | |||||
| 26 | 08015987 | Base, Backguard |
|
- | |||||
| 10A | 5308015967 | Support - Lh |
|
- | |||||
| 2A | 5308017080 | Switch S/u Large |
|
- | |||||
| 2B | 5308017083 | Switch S/u Auto |
|
- | |||||
| 4A | 08017086 | Ind Lite - S/u |
|
- | |||||
| 9A | 08015974 | End Cap, Rh |
|
- |
