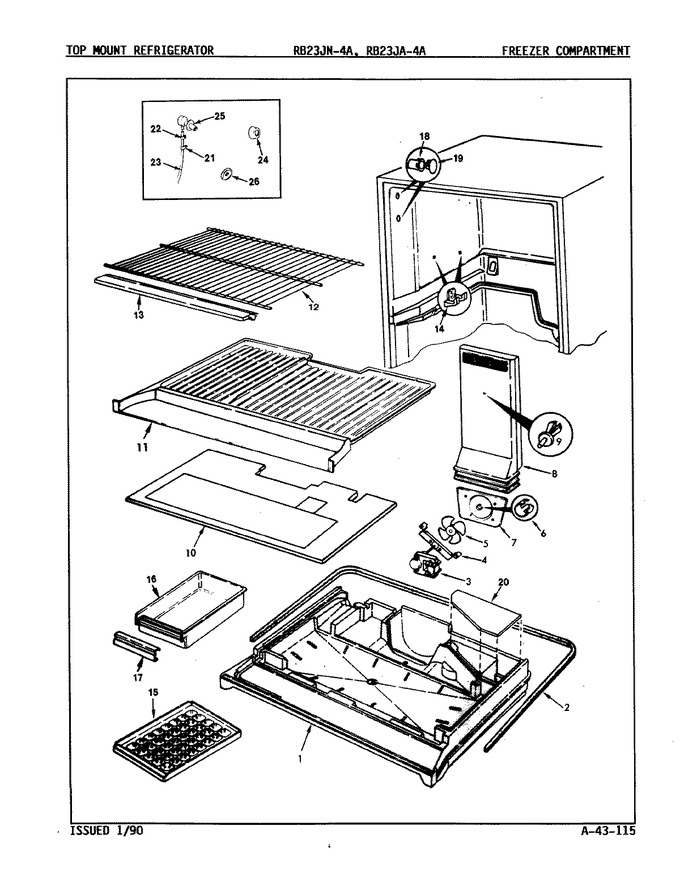

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66608-1 | Tray, Styrofoam Mullion |
|
- | |||||
| 2 | 65518-4 | Seal |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 4 | 29675-30 | Ground Wire |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 60565-1 | Wire Harness |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66044-4 | Tunnel, Air |
|
- | |||||
| 9 | 66045-1 | Pin, Air Tunnel Mtg. |
|
- | |||||
| 10 | 60557-3 | Cover, Evaporator |
|
- | |||||
| 11 | 66477-1 | Bottom, Frz. |
|
- | |||||
| 12 | 60438-21 | Shelf, Frz |
|
- | |||||
| 13 | 68136-25 | Trim, Shelf |
|
- | |||||
| 14 | 400019-1 | Screw |
|
- | |||||
| 14 | 66101-1 | Stud, Shelf |
|
- | |||||
| 15 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 | |||||
| 16 | 60653-1 | Pan, Ice |
|
- | |||||
| 17 | 60132-100 | Trim, Handle Pan |
|
- | |||||
| 18 | 60313-1 | Cup, Shelf |
|
- | |||||
| 19 | 60321-1 | Plug |
|
- | |||||
| 20 | 66480-3 | Cover, Plenum |
|
- | |||||
| 20 | 68330-2 | Orifice, Plenum |
|
- |
