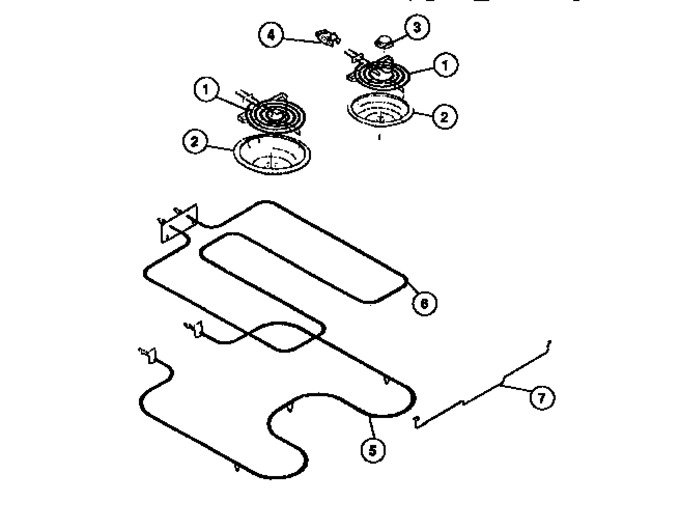

02 - Splasher Parts
03 - Burner
04 - Door
05 - Drawer
06 - Top
07 - Upper Door
08 - Body
09 - Power Control
10 - Upper Body
11 - Upper Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08067763 | Elmnt., Tp. (lrg.) (2) |
|
- | |||||
| 2 | 08010469 | Pan-elmnt-lrg (2) |
|
- | |||||
| 3 | 08067828 | Medallion (4) |
|
- | |||||
| 4 | 08067829 | Block, Terminal (4) |
|
- | |||||
| 5 | 08067761 | Elmnt., Oven Bake |
|
- | |||||
| 6 | 08067760 | Elmnt., Broil |
|
- | |||||
| 7 | 08067793 | Support, Element |
|
- | |||||
| 1A | 318372211 | Elmnt-top-sm (2) (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| 2A | 08010467 | Pan-elmnt-sm (2) |
|
- |
