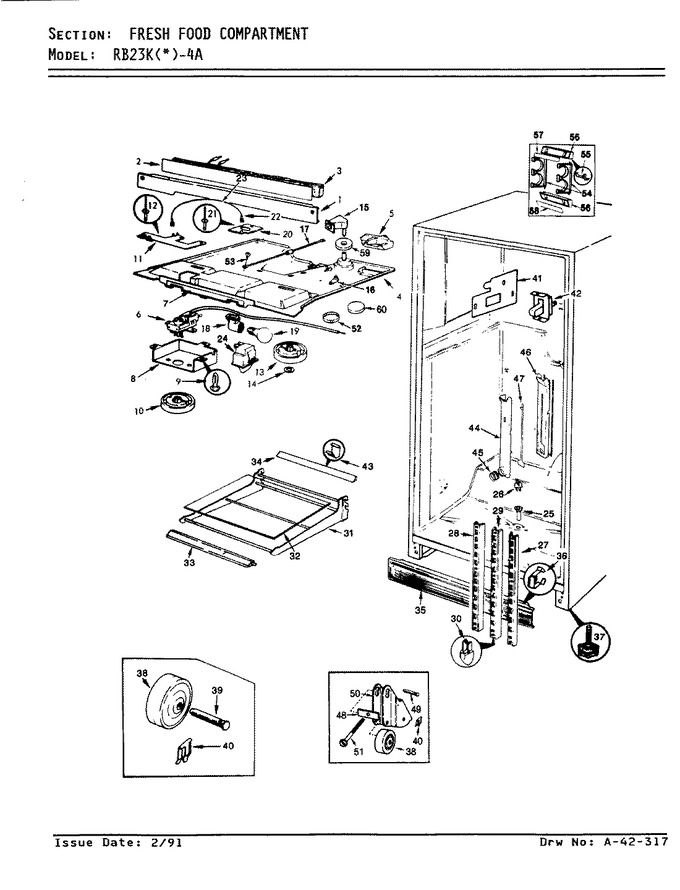

SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68434-3-AM		Divider, Mullion (alm)		Appelez-nous	-
1	65275-23		Screw		Appelez-nous	-
2	68829-3		Heater		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
3	68685-2		Wire Harness		Appelez-nous	-
4	68533-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-1)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	60571-79		Insert Trim		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68600-5		Knob, Temp. Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68600-6		Knob, Frz. Control		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	67915-4		Orifice, Damper Assy		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67499-4		Rod		Appelez-nous	-
18	68974-2		Receptacle, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-28		Ground Wire		Appelez-nous	-
23	29675-22		Ground Wire		Appelez-nous	-
24	54653-28		Cord, Switch/light		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
28	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
29	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
29	400037-28		Screw		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	60570-11		Frame, Shelf		Appelez-nous	-
32	68139-14		Glass Cantilever Shelf		Appelez-nous	-
33	68136-26		Trim, Cantilever Shelf		Appelez-nous	-
34	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
35	60237-39		Kickplate		Appelez-nous	-
36	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
36	60100-1		Clip, Kickplate				$ 5.85
37	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
38	29834-2		Wheel		Appelez-nous	-
39	29835-2		Pin, Wheel		Appelez-nous	-
40	60216-1		Clip		Appelez-nous	-
41	60583-1		Bracket, Switch		Appelez-nous	-
42	60585-1		Switch, Mullion Heater		Appelez-nous	-
42	402013-1		Screw		Appelez-nous	-
43	66333-2		Clip		Appelez-nous	-
44	68285-6		Cover, Air Tunnel		Appelez-nous	-
45	68282-1		Bellows, Air Tunnel		Appelez-nous	-
46	68289-2		Insulation, Air Tunnel		Appelez-nous	-
47	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
47	68290-3		Damper, Air Tunnel		Appelez-nous	-
48	59101-1		Tapping Plate, Wheel		Appelez-nous	-
49	64965-1		Pin, Wheel		Appelez-nous	-
50	67530-1		Bracket, Wheel		Appelez-nous	-
51	406083-1		Screw, Wheel Adjustment		Appelez-nous	-
52	67493-1		Cover, Crank		Appelez-nous	-
53	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
53	420005-1		Washer, Control Rod		Appelez-nous	-
54	56519-4		Rack, Wine		Appelez-nous	-
55	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
55	58057-1		Spring, Wine Rack		Appelez-nous	-
56	65689-1		Support, Wine Rack		Appelez-nous	-
58	68821-9		Insert		Appelez-nous	-
