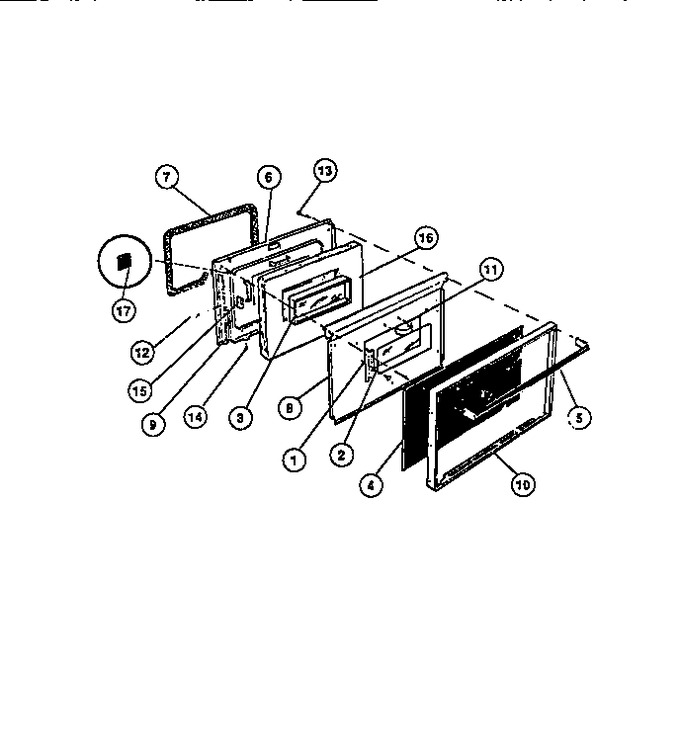

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08067996 | Brkt., Glass (2) |
|
- | |||||
| 2 | 5303051148 | Glass, Heat Barrier |
|
- | |||||
| 3 | 5303206271 | Glass Package |
|
- | |||||
| 4 | 5303131132 | Glass, Front |
|
- | |||||
| 5 | 08067968 | Handle |
|
- | |||||
| 6 | 3931014 | Liner |
|
- | |||||
| 7 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 8 | 08067805 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Support, Glass (2) |
|
- | |||||
| 10 | 08067807 | Trim, Oven Door |
|
- | |||||
| 11 | 3131253 | Clip, Retainer (2) |
|
- | |||||
| 12 | 3131974 | Fastener, Spacer (6) |
|
- | |||||
| 13 | 08067786 | Screw, Hndl. Mtg. (2) |
|
- | |||||
| 14 | 3131573 | Scrw., Dr. Mtg. (3) |
|
- | |||||
| 15 | 08067799 | Extrsn., Channel (2) |
|
- | |||||
| 16 | 08067803 | Insulation, Wool |
|
- | |||||
| 17 | 3934033 | Seal, Foam (4) |
|
- | |||||
| 15A | 08010463 | Fastener-clip |
|
- | |||||
| 15B | 5303051818 | Scrw., Dr. Mtg. (11) (non-illustrated) |
|
- |
