Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68476-5-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68477-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	60066-1		Tray, Egg		Appelez-nous	-
5	66255-4		Door Handle		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
6	9986-122		Screw		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
9	55782-2		Plug Button (white)		Appelez-nous	-
9	55782-6		Plug Button (almond)		Appelez-nous	-
10	65937-9		Liner, Door		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	68677-6		Liner, F.f. Door		Appelez-nous	-
12	66199-7		Gasket, Door		Appelez-nous	-
13	66199-8		Gasket, Door		Appelez-nous	-
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	60037-40		Door Shelf		Appelez-nous	-
16	68130-57		Insert, Pickoff		Appelez-nous	-
17	66184-363		Door, Dairy (large)		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	53709-20		Hinge, Upper		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	66920-3		Plug Button		Appelez-nous	-
21	66920-2		Plug Button		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	54233-2		Washer		Appelez-nous	-
24	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
24	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
25	68811-2		Hinge, Center		Appelez-nous	-
26	68812-1		Shim, Center Hinge		Appelez-nous	-
27	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
27	65275-23		Screw		Appelez-nous	-
28	67322-1		Pin, Center Hinge		Appelez-nous	-
29	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
29	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
30	403100-1		Screw		Appelez-nous	-
30	67714-4		Hinge		Appelez-nous	-
31	60626-1		Shim, Lower Hinge		Appelez-nous	-
32	68789-1		Hinge Pin		Appelez-nous	-
33	67483-3		Washer, Door Spacer			Immediately	$ 45.86
34	60030-1		Door Stop		Appelez-nous	-
35	60419-11		Door Stop, Refrig		Appelez-nous	-
35	9986-108		Screw		Appelez-nous	-
36	WP61003045		Trim, Shelf Door   (Replaces: 68375-15)				$ 129.55
37	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
38	68376-15		Trim, Door Shelf		Appelez-nous	-
39	WP61003045		Trim, Shelf   (Replaces: 68375-21)				$ 129.55
40	66645-6		Organizer Package		Appelez-nous	-
41	68016-3		Handle Insert, Front		Appelez-nous	-
42	60445-3		Insert, Handle (back)		Appelez-nous	-
43	68016-4		Insert		Appelez-nous	-
44	9986-112		Screw		Appelez-nous	-
44	60445-3		Insert, Handle (back)		Appelez-nous	-
45	60453-20		Trim, Handle Extension		Appelez-nous	-
46	60453-19		Trim Extension		Appelez-nous	-
47	65790-3		Tapping Plate		Appelez-nous	-
47	403100-1		Screw		Appelez-nous	-
48	60037-35		Door Shelf		Appelez-nous	-
49	68130-52		Insert		Appelez-nous	-
50	WP61003045		Trim, Shelf Door   (Replaces: 68375-14)				$ 129.55
51	52077-26		Seal		Appelez-nous	-
52	68700-2		Access Panel		Appelez-nous	-
52	68781-1		Insulation, Fountain Back		Appelez-nous	-
52	68779-1		Insulation, Fountain Perimeter		Appelez-nous	-
53	68785-6		Insert, Food Storage		Appelez-nous	-
54	WPW10426709		Tubing Door Fountain   (Replaces: 67187-9)				$ 126.83
55	68571-1		Chute, Ice		Appelez-nous	-
56	68594-2		Escutcheon		Appelez-nous	-
57	95121-1		Tape, Escutcheon		Appelez-nous	-
58	68536-1		Wire Harness		Appelez-nous	-
58	68907-2		Wire Harness		Appelez-nous	-
59	65184-3		Latch		Appelez-nous	-
60	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
60	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
61	64097-11		Organizer, Shelf		Appelez-nous	-
62	60037-39		Door Shelf		Appelez-nous	-
63	68130-56		Insert		Appelez-nous	-
64	68017-2		Insert, Vinyl Clad		Appelez-nous	-
64	68017-3		Insert, Vinyl Clad		Appelez-nous	-
65	65246-1		Retainer				$ 5.04
66	60603-17		Insert, Nameplate		Appelez-nous	-
67	60603-19		Insert, Nameplate		Appelez-nous	-
68	68426-1		Dish, Microwave		Appelez-nous	-
69	68427-1		Cover, Micro Dish		Appelez-nous	-
69	68534-1		Insert, M/wave Dish		Appelez-nous	-

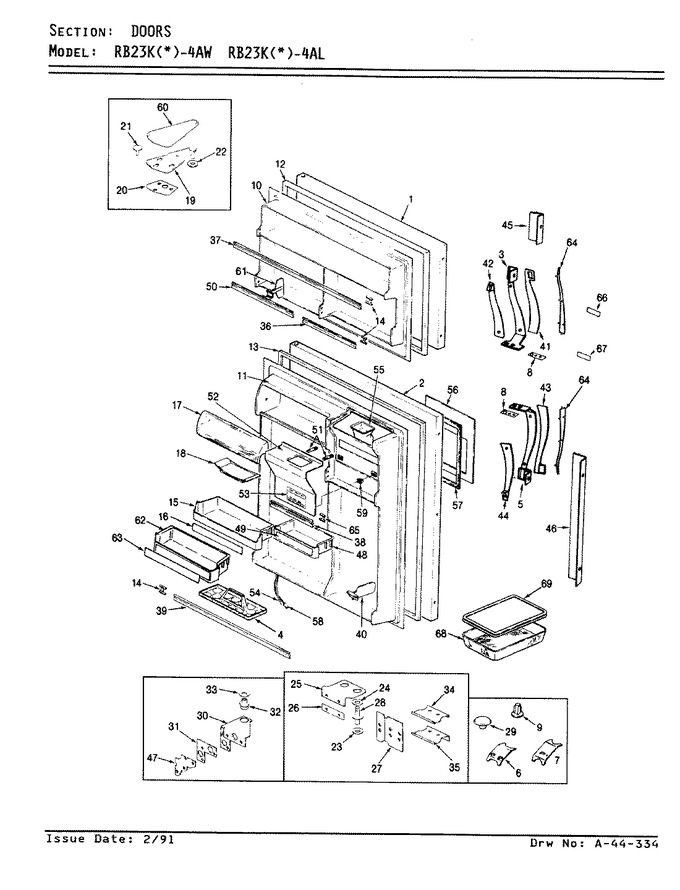

    View Diagram in Separate Window       Print Part List
