SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Freezer Door


04 - Fresh Food Compartment


05 - Fresh Food Door


06 - Ice & Water Dispenser


07 - Ice Maker & Bin


08 - Shelves & Accessories


09 - Unit Compartment & System

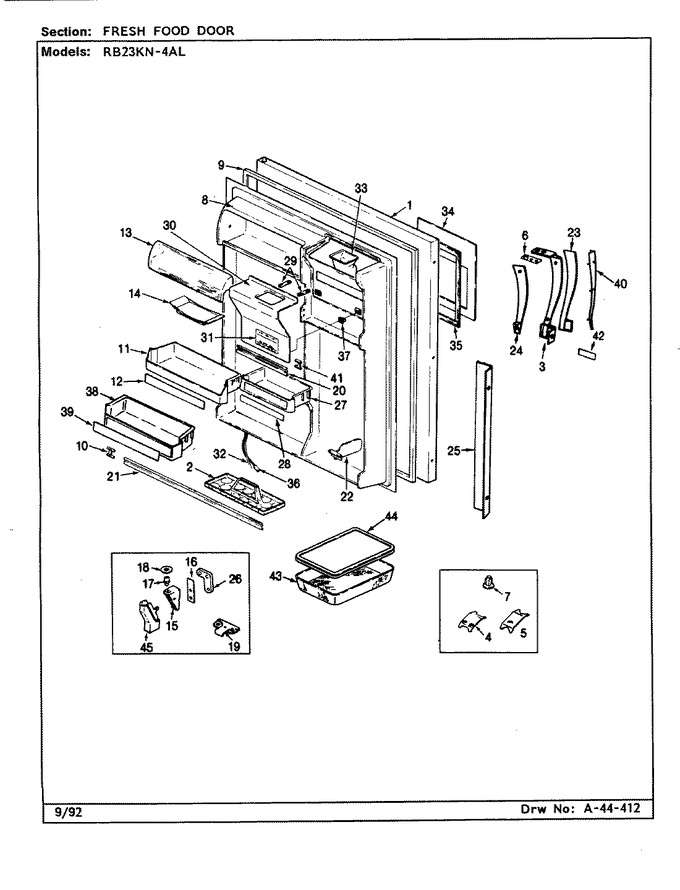

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68477-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60066-1		Tray, Egg		Appelez-nous	-
3	66255-4		Door Handle		Appelez-nous	-
4	60123-2		Clip, Stop Screw		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	68776-1		Shim Handle----na		Appelez-nous	-
7	55782-6		Plug Button (almond)		Appelez-nous	-
8	68677-6		Liner, F.f. Door		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
9	66199-8		Gasket, Door		Appelez-nous	-
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
11	60037-40		Door Shelf		Appelez-nous	-
12	68130-57		Insert, Pickoff		Appelez-nous	-
13	66184-363		Door, Dairy (large)		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	68975-1		Hinge, Lower		Appelez-nous	-
15	65275-51		Screw, Lower Hinge		Appelez-nous	-
16	69031-3		Shim		Appelez-nous	-
17	68976-1		Pin, Lower Hinge		Appelez-nous	-
18	67483-3		Washer, Door Spacer			Immediately	$ 45.86
19	65275-48		Screw		Appelez-nous	-
19	68987-2		Stop, Door		Appelez-nous	-
20	68376-15		Trim, Door Shelf		Appelez-nous	-
21	WP61003045		Trim, Shelf   (Replaces: 68375-21)				$ 129.55
22	66645-6		Organizer Package		Appelez-nous	-
23	68016-6		Handle Insert, Front		Appelez-nous	-
24	60445-4		Insert, Handle (back)		Appelez-nous	-
24	65275-53		Screw		Appelez-nous	-
25	60453-21		Handle Trim Extension		Appelez-nous	-
26	65275-59		Screw		Appelez-nous	-
26	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
27	60037-35		Door Shelf		Appelez-nous	-
28	68130-52		Insert		Appelez-nous	-
29	52077-26		Seal		Appelez-nous	-
30	68781-1		Insulation, Fountain Back		Appelez-nous	-
30	68700-2		Access Panel		Appelez-nous	-
30	68779-1		Insulation, Fountain Perimeter		Appelez-nous	-
31	68785-8		Insert		Appelez-nous	-
32	WPW10426709		Tubing Door Fountain   (Replaces: 67187-9)				$ 126.83
33	68571-1		Chute, Ice		Appelez-nous	-
34	68594-3		Escutcheon		Appelez-nous	-
35	95121-1		Tape, Escutcheon		Appelez-nous	-
36	68907-2		Wire Harness		Appelez-nous	-
36	69152-1		Wire Harness Door To Main		Appelez-nous	-
37	65184-3		Latch		Appelez-nous	-
38	60037-39		Door Shelf		Appelez-nous	-
39	68130-56		Insert		Appelez-nous	-
40	68017-3		Insert, Vinyl Clad		Appelez-nous	-
41	65246-1		Retainer				$ 5.04
42	60603-20		Insert Nameplate		Appelez-nous	-
43	68426-1		Dish, Microwave		Appelez-nous	-
44	68534-1		Insert, M/wave Dish		Appelez-nous	-
44	68427-1		Cover, Micro Dish		Appelez-nous	-
45	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
45	65275-47		Screw, Hinge Cover (black)		Appelez-nous	-
