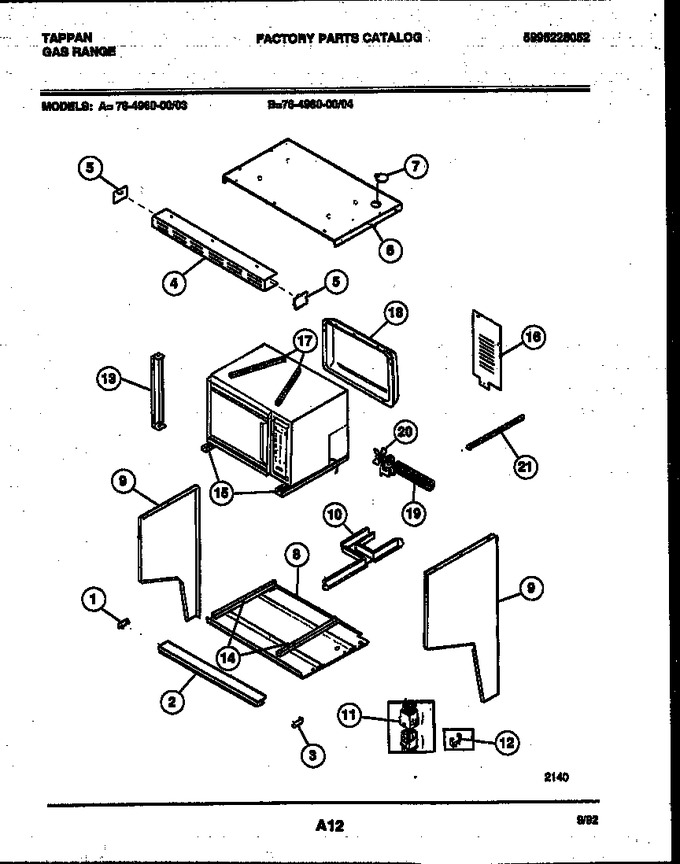

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269930		Cap-end Lh		Appelez-nous	-
2	5303269927		Trim-bottom		Appelez-nous	-
3	5303269931		Cap-end Rh		Appelez-nous	-
4	5303269928		Trim-vent		Appelez-nous	-
5	5303269932		Cap-end (2)		Appelez-nous	-
6	5303269957		Panel-top		Appelez-nous	-
7	08067732		Cover-outlet		Appelez-nous	-
8	5303270071		Panel-base		Appelez-nous	-
9	5303269987		Panel U/o Bodyside-lh-white		Appelez-nous	-
10	5303269948		Duct-air		Appelez-nous	-
11	5303271454		Upper Control Pnl Plug		Appelez-nous	-
12	5308008992		Fastener		Appelez-nous	-
13	5303269929		Trim-side		Appelez-nous	-
14	5303269936		Channel-slide (2)		Appelez-nous	-
15	5303269937		Channel-micro Slide (2)		Appelez-nous	-
16	5303269945		Cover-rear Access		Appelez-nous	-
17	5303269947		Duct-air Foam (2)		Appelez-nous	-
18	5303269986		Vent-back		Appelez-nous	-
19	5303269993		Motor-fan Cooling		Appelez-nous	-
20	5303270080		Plate-fan Mtg		Appelez-nous	-
21	5303270097		Support-top Corner		Appelez-nous	-
*78862	5303017159		Relay-fan		Appelez-nous	-
*78862	5303271601		Duct-air Foam		Appelez-nous	-
11A	558T031P01		Microwave Fan Plug		Appelez-nous	-
11B	597R028S01		Vent Hood Recipt		Appelez-nous	-
9A	3051263		Panel U/o Bodyside-rh-white		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
