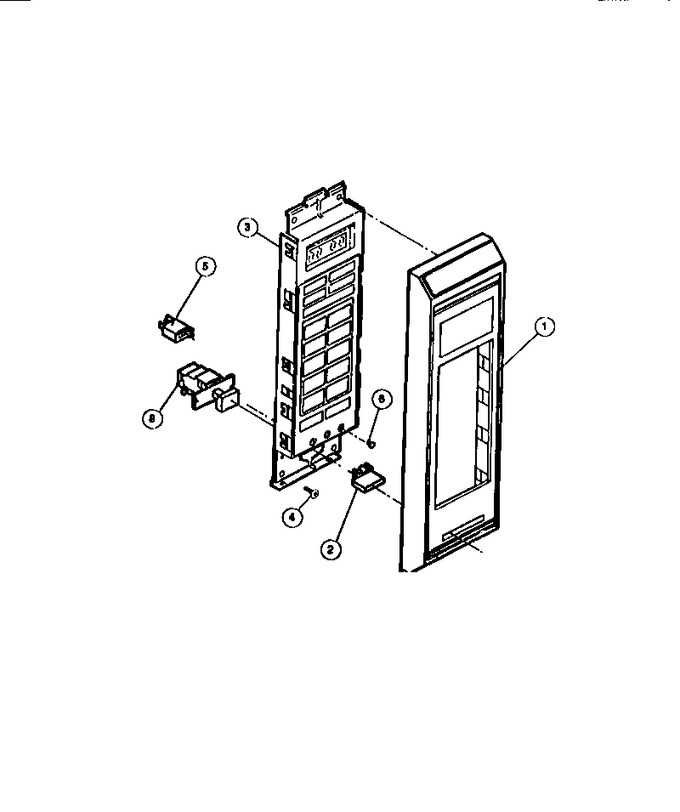

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202646 | Panel-control |
|
- | |||||
| 2 | 5308037619 | Button-switch |
|
- | |||||
| 3 | 5303206018 | Panel-touch (compl) |
|
- | |||||
| 4 | 3013934 | Screw-8-32 X 3/8 Control Panel Mtg (4) |
|
- | |||||
| 5 | 5303201800 | Housing Lamp |
|
- | |||||
| 6 | 5308037703 | Lens-amber |
|
- | |||||
| 8 | 5308037706 | Switch-turntable |
|
- |
