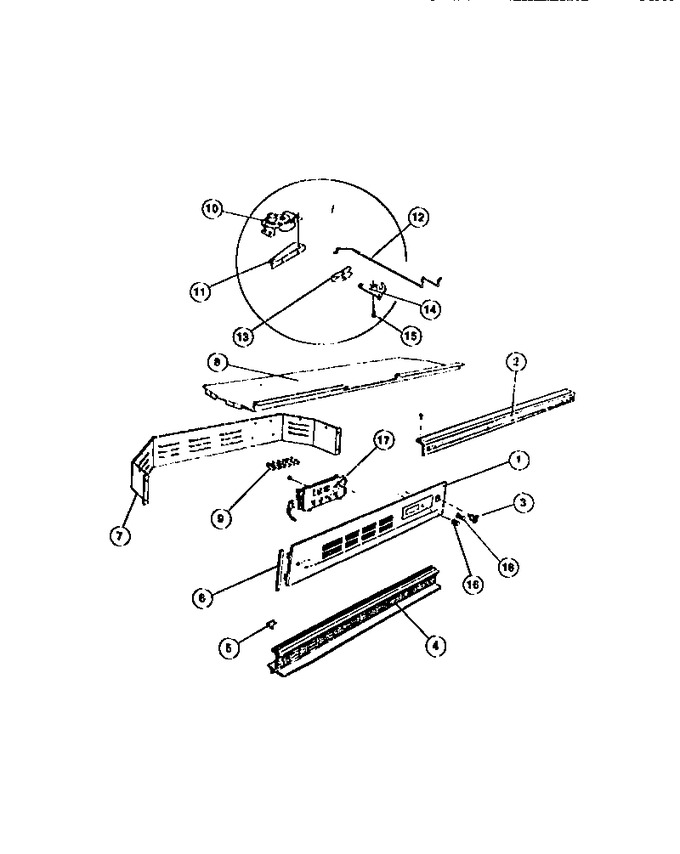

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303274241 | Switch-membrane |
|
- | |||||
| 2 | 5303209153 | Trim-top |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 3202139 | Trim-vent |
|
- | |||||
| 5 | 5303206740 | Bracket-trim Mounting (4) |
|
- | |||||
| 6 | 5303206741 | Trim-end Member (2) |
|
- | |||||
| 7 | 5303206742 | Housing-cont |
|
- | |||||
| 8 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 9 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 10 | 5303269766 | Motor-latch Assembly |
|
- | |||||
| 11 | 3016276 | Base-motor Mounting |
|
- | |||||
| 12 | 3016241 | Rod-lock Mechanism |
|
- | |||||
| 13 | 3051647 | Housing, Latch |
|
- | |||||
| 14 | 3051648 | Latch-door |
|
- | |||||
| 15 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 16 | 3202378 | Knob-timer |
|
$ 49.82 | |||||
| 17 | 5303272457 | Electronic Oven Control |
|
- | |||||
| 18 | 3202379 | Knob-switch |
|
- | |||||
| *01280 | 5303210643 | Plate-switch Mounting |
|
- | |||||
| *01281 | 5303273248 | Switch-low Limit Door Latch |
|
- | |||||
| *01282 | 5303273247 | Switch-hi Limit Door Latch |
|
- |
