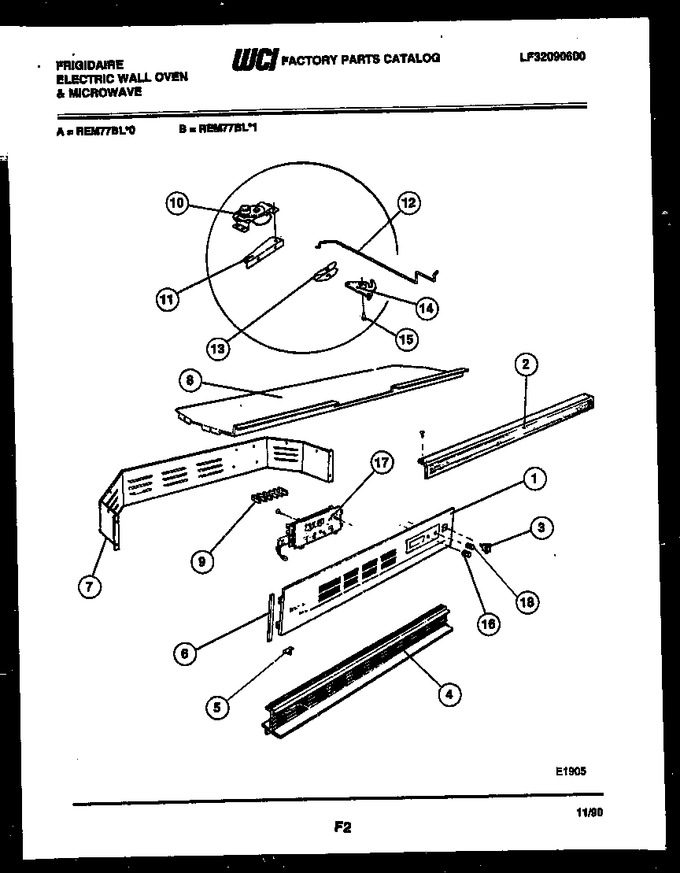

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202695 | Switch-membrane |
|
- | |||||
| 2 | 5303209153 | Trim-top |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 3202139 | Trim-vent |
|
- | |||||
| 5 | 5303206740 | Bracket-trim Mtg (4) |
|
- | |||||
| 6 | 5303206741 | Trim-end Membr (2) |
|
- | |||||
| 7 | 5303206742 | Housing-cont |
|
- | |||||
| 8 | 3016309 | Cover-cont Hsg |
|
- | |||||
| 9 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 10 | 3202381 | Motor-latch Assy |
|
- | |||||
| 11 | 3016276 | Base Motor Mtg |
|
- | |||||
| 12 | 3016241 | Rod-lock Mech |
|
- | |||||
| 13 | 3051647 | Housing, Latch |
|
- | |||||
| 14 | 3051648 | Latch-door |
|
- | |||||
| 15 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 16 | 3202378 | Knob-timer |
|
$ 49.82 | |||||
| 17 | 3202652 | Clock |
|
- | |||||
| 18 | 3202379 | Knob-switch |
|
- |
