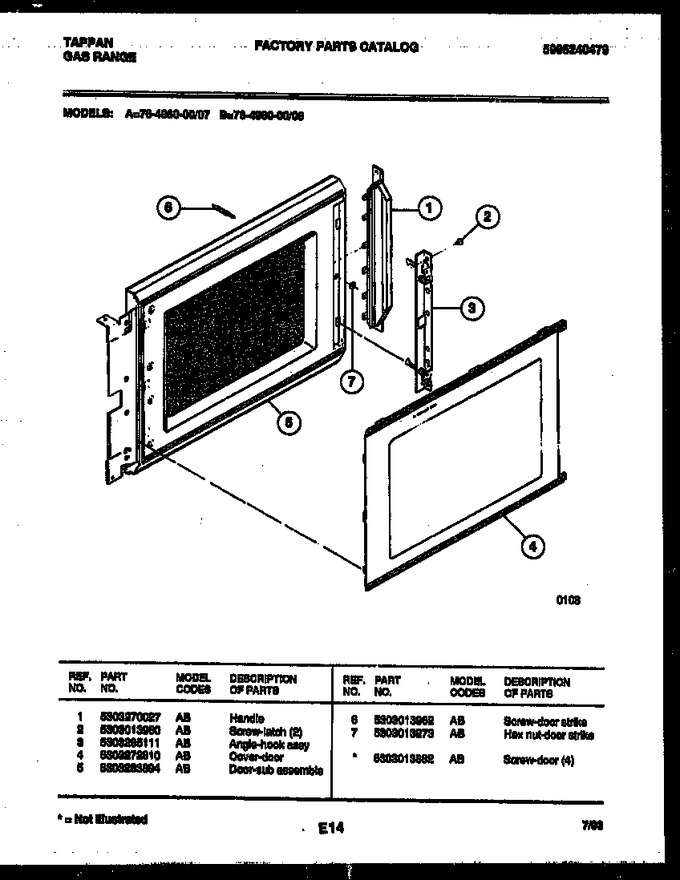

1 5303270027 Handle Appelez-nous -
2 5303013960 Screw-latch (2) Appelez-nous -
3 5303285111 Angle-hook Assy Appelez-nous -
4 5303272810 Cover-door Appelez-nous -
5 5303283894 Door-sub Assemble Appelez-nous -
6 5303013962 Screw-door Strike Appelez-nous -
7 5303013273 Hex Nut -door Strike Appelez-nous -
*86879 5303013882 Screw-door (4) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
