Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69420-2-AM Channel, Mullion Divider (alm) Appelez-nous -
2 65275-54 Screw Appelez-nous -
3 69617-2 Heater, Divider Channel Appelez-nous -
4 60140-2 Insulation Appelez-nous -
4 69287-2 Wire Harness Appelez-nous -
5 69409-1 Top, F.f. Compartment Appelez-nous -
6 69623-1 Deflector, Air Appelez-nous -
7 WP68601-6 Control, Temperature   (Replaces: 68601-5) In-Stock Immediately $ 233.80

7 406013-1 Screw Appelez-nous -
8 60571-65 Insert Appelez-nous -
9 28013-2 Rivet, Air Tunnel Appelez-nous -
9 405012-1 Screw Appelez-nous -
9 69421-4 Cover, Temp. Cont. Appelez-nous -
10 69417-5 Knob, Control Appelez-nous -
11 60147-1 Bracket, Control Appelez-nous -
11 WP210720 Rivet   (Replaces: 26397-9) Special Order $ 12.14

12 WP61006073 Knob, Control   (Replaces: 69417-6) Special Order $ 30.53

13 W11233072 Screw   (Replaces: 405016-103) In-Stock Immediately $ 12.62

14 420092-900 Washer, Spring Appelez-nous -
15 69811-2 Orifice Assy., Damper Appelez-nous -
16 67636-1 Crank, Frz. Control Appelez-nous -
17 67493-1 Cover, Crank Appelez-nous -
18 69418-3 Rod, Frz. Control Appelez-nous -
19 WP59002061 Screw   (Replaces: 65275-13) Special Order $ 6.98

19 420005-1 Washer, Control Rod Appelez-nous -
20 68974-3 Receptacle, Bulb Appelez-nous -
21 W11679940 Bulb, Light   (Replaces: 68123-1) In-Stock Immediately $ 10.17

22 WP210720 Rivet   (Replaces: 26397-9) Special Order $ 12.14

22 60147-1 Bracket, Control Appelez-nous -
23 W11384469 Switch, Light   (Replaces: 66987-1) In-Stock Immediately $ 33.51

24 54531-7 Tube, Drain Appelez-nous -
25 65039-1 Cap, Drain Tube Appelez-nous -
26 W11117769 Leg, Leveling   (Replaces: 68664-1) In-Stock Immediately $ 16.61

27 69876-2 Kickplate (black) Appelez-nous -
28 69940-1 Clip, Kickplate Appelez-nous -
28 WP489478 Screw   (Replaces: 400017-1) Special Order $ 6.98

29 60583-1 Bracket, Switch Appelez-nous -
29 402013-1 Screw Appelez-nous -
30 69283-1 Switch, Heater Appelez-nous -
31 69037-1 Disc, Crank Cover Appelez-nous -
32 68989-1 Seal, Top Tower Appelez-nous -
33 29834-2 Wheel Appelez-nous -
34 29835-2 Pin, Wheel Appelez-nous -
35 60216-1 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

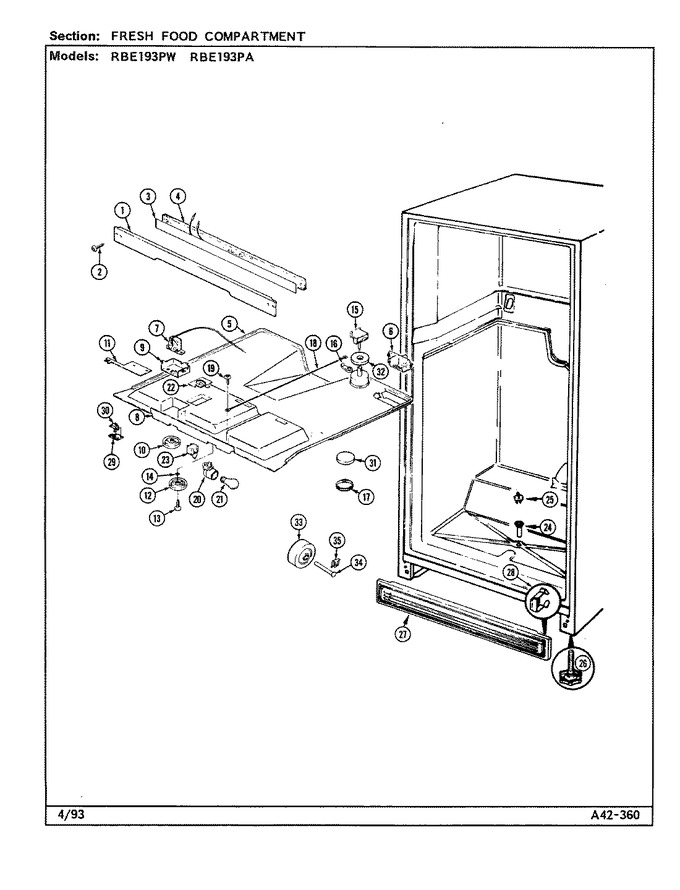

Diagram for RBE193PA (BOM: DG63A)
