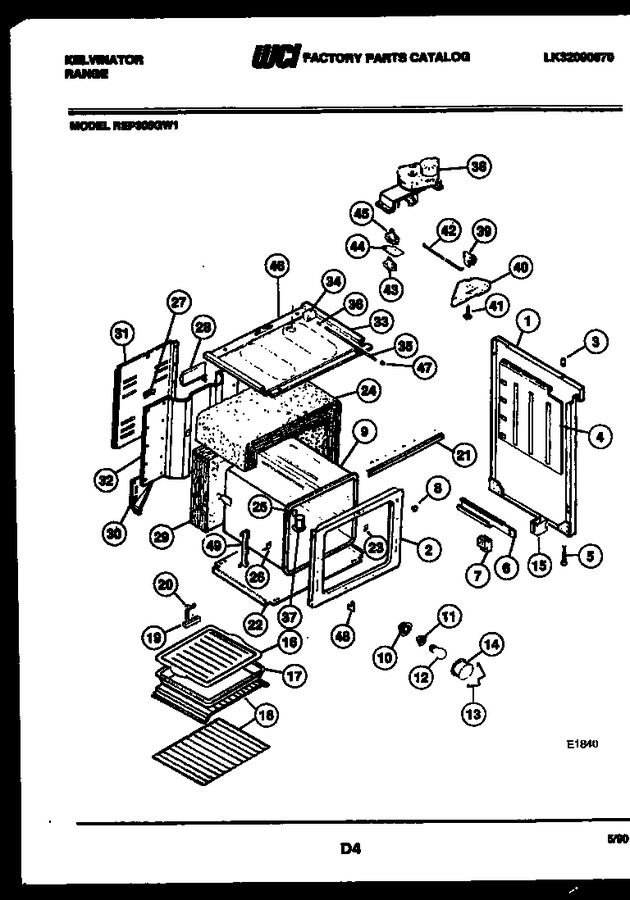

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012536		Side Panel Lh-wheat		Appelez-nous	-
1	5308011051		Body-drawer		Appelez-nous	-
1	08012535		Side Panel-rh Wheat		Appelez-nous	-
2	5308011059		Pnl-drawer Wheat		Appelez-nous	-
3	5308014202		Handle-drawer		Appelez-nous	-
4	5303209487		Guide - Drawer (2)		Appelez-nous	-
22	3206275		Panel, Bottom		Appelez-nous	-
23	3202082		Cover Seam		Appelez-nous	-
24	5303051630		Insulation, Oven Wrap		Appelez-nous	-
25	3016334		Plug Button, Thermo Bulb Hole		Appelez-nous	-
26	3201632		Spacer, Oven (2)		Appelez-nous	-
27	3016281		Spring, Oven (2)		Appelez-nous	-
28	3051634		Channel, Air		Appelez-nous	-
29	5303051630		Insulation, Oven Back		Appelez-nous	-
30	3017481		Gusset-rear, Rh		Appelez-nous	-
30	3017482		Gusset-rear, Lh		Appelez-nous	-
31	5303051856		Cover, Wire		Appelez-nous	-
32	3205757		Back, Range		Appelez-nous	-
33	08012542		Panel - Subtop		Appelez-nous	-
34	W10169313		Switch, Door   (Replaces: 5308003081)			Immediately	$ 29.18
35	08007445		Push Rod		Appelez-nous	-
36	08007444		End-push Rod		Appelez-nous	-
37	08012574		Vent-tube		Appelez-nous	-
38	5308015743		Latch, Motor				$ 211.92
39	3202387		Latch, Door		Appelez-nous	-
40	3051647		Housing-door Latch		Appelez-nous	-
41	5308012004		Axle				$ 8.29
42	3051649		Tie Bar		Appelez-nous	-
43	5308006582		Switch, Lower		Appelez-nous	-
44	08003090		Insulator		Appelez-nous	-
45	5303051740		Switch, Upper		Appelez-nous	-
46	3205755		Shield-wire		Appelez-nous	-
47	08067758		Cover - Rod End				$ 2.31
48	3019063		Retainer - Door (2)		Appelez-nous	-
49	3201631		Channel Assy, Hinge (2)				$ 58.22
*16933	3934063		Anti-tip Kit		Appelez-nous	-
*16933	5300009126		Clip		Appelez-nous	-
