02 - Splasher Control


03 - Cooktop Parts


04 - Burner Parts


05 - Drawer Parts


06 - Lower Oven Door Parts


07 - Lower Body Parts


08 - Upper Oven Door Parts


09 - Upper Body Parts


10 - Control Panel


11 - Body Parts


12 - Power Control


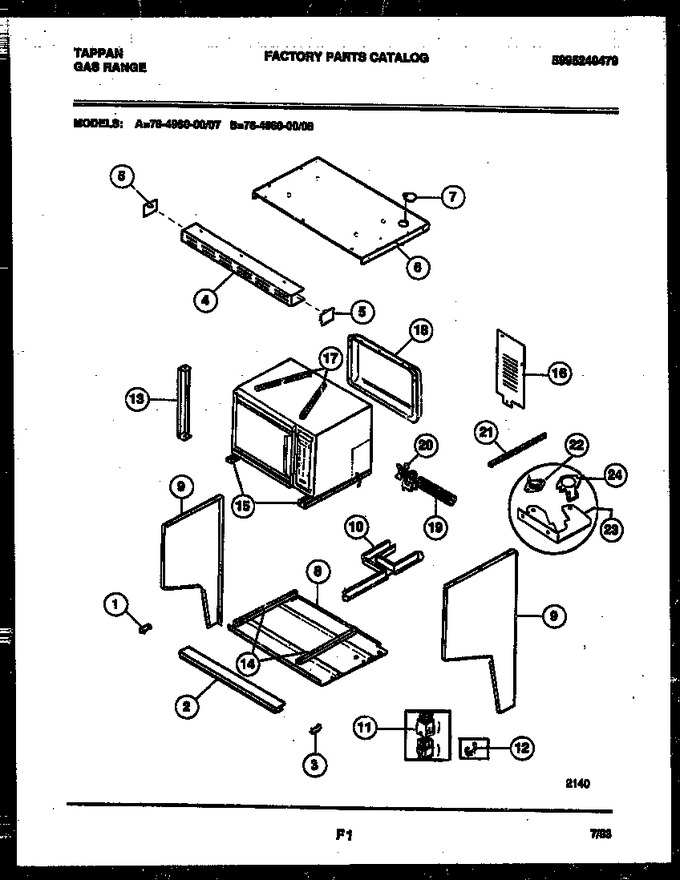

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269930		Cap-end Lh		Appelez-nous	-
2	5303269927		Trim-bottom		Appelez-nous	-
3	5303269931		Cap-end Rh		Appelez-nous	-
4	5303269928		Trim-vent		Appelez-nous	-
5	5303269932		Cap-end (2)		Appelez-nous	-
6	5303269957		Panel-top		Appelez-nous	-
7	08067732		Cover-outlet		Appelez-nous	-
8	5303270071		Panel-base		Appelez-nous	-
9	5303269987		Panel-side Upper-lh-white		Appelez-nous	-
9	5303269989		Panel-side Upper Lh Almond		Appelez-nous	-
10	5303269948		Duct-air		Appelez-nous	-
11	08010551		Plug Kit		Appelez-nous	-
12	5308008992		Fastener		Appelez-nous	-
13	5303269929		Trim-side		Appelez-nous	-
14	3019079		Channel-slide (2)		Appelez-nous	-
15	3019060		Channel-micro Slide (2)		Appelez-nous	-
16	5303269945		Cover-rear Access		Appelez-nous	-
17	5303269947		Duct-air Foam (2)		Appelez-nous	-
18	5303269986		Cover-vent Back		Appelez-nous	-
19	5303269993		Motor-fan Cooling		Appelez-nous	-
20	5303270080		Plate-fan Mtg		Appelez-nous	-
21	5303270097		Support-top Corner		Appelez-nous	-
22	316053300		Switch-cut		Appelez-nous	-
23	316053400		Bracket-cut		Appelez-nous	-
24	316053500		Switch-heater		Appelez-nous	-
21A	5303017159		Relay-fan (non-illustrated)		Appelez-nous	-
9A	3051263		Panel-side Upper Rh White		Appelez-nous	-
9A	3051264		Panel-side Upper Rh Almond		Appelez-nous	-
