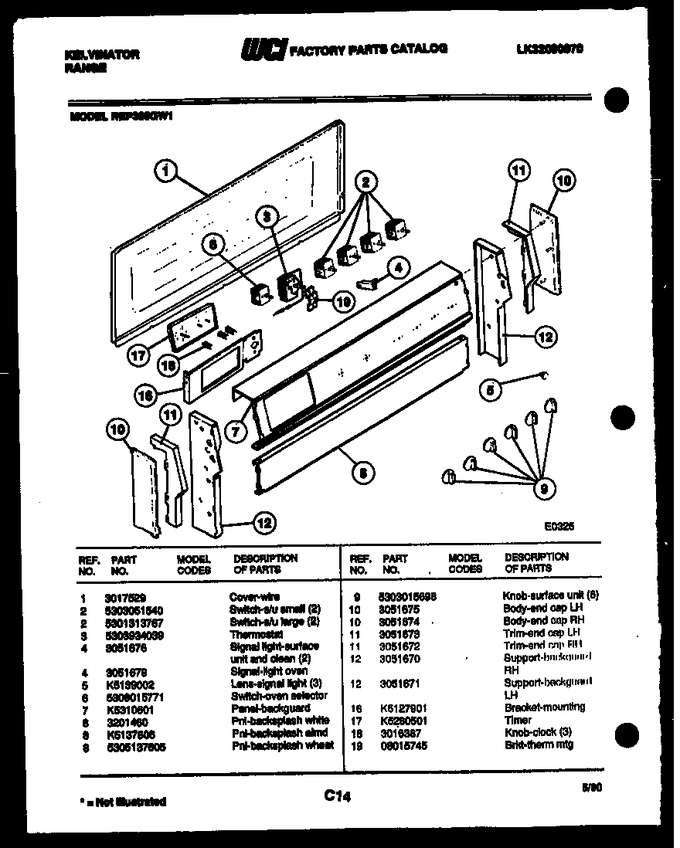

02 - Backguard Parts
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017529 | Cover-wire |
|
- | |||||
| 2 | 5303051540 | Switch-s/u Small (2) |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Large (2) |
|
- | |||||
| 3 | 5303934039 | Thermostat |
|
- | |||||
| 4 | 3051679 | Signal Light-oven |
|
- | |||||
| 4 | 3051676 | Signal Light-surface Unit And Clean (2) |
|
- | |||||
| 5 | K5139002 | Lens Signal Light (3) |
|
- | |||||
| 6 | 5308015771 | Switch-oven Selector |
|
- | |||||
| 7 | K5310601 | Panel - Backguard |
|
- | |||||
| 8 | 3201460 | Pnl-backsplash White |
|
- | |||||
| 9 | 5303015698 | Knob-surface Unit (6) |
|
- | |||||
| 10 | 3051675 | Body-end Cap-l.h. |
|
- | |||||
| 10 | 3051674 | Body-end Cap-r.h. |
|
- | |||||
| 11 | 3051673 | Trim-end Cap-l.h. |
|
- | |||||
| 11 | 3051672 | Trim-end Cap-r.h. |
|
- | |||||
| 12 | 3051670 | Support-backguard Rh |
|
- | |||||
| 12 | 3051671 | Support-backguard Lh |
|
- | |||||
| 16 | K5127901 | Bracket Mounting |
|
- | |||||
| 17 | K5260501 | Timer |
|
- | |||||
| 18 | 3016387 | Knob-clock (3) |
|
- | |||||
| 19 | 08015745 | Brkt-therm Mtg |
|
- |
