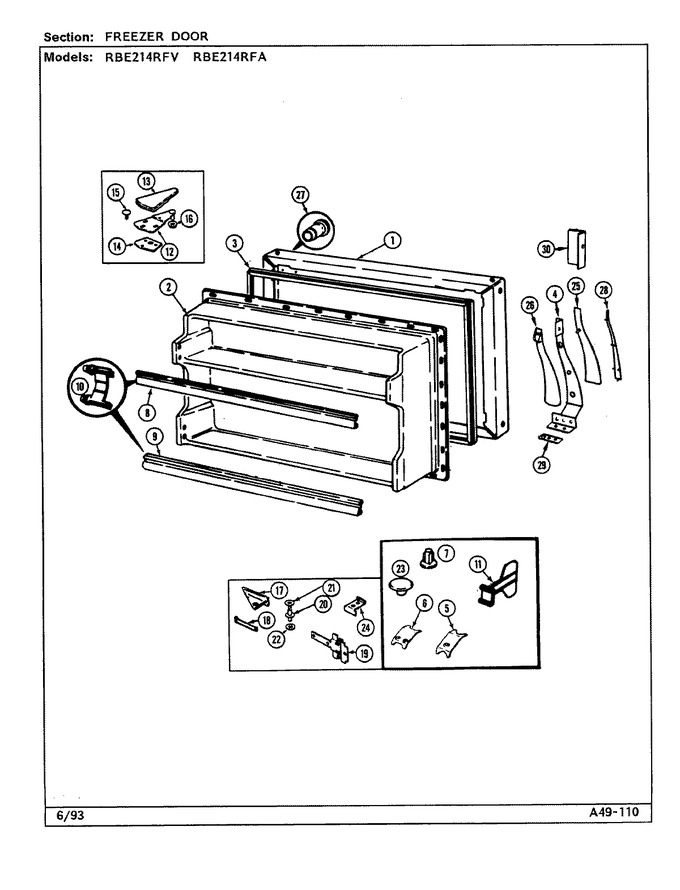

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-3-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69470-1		Liner, Frz. Door		Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)				$ 142.50
4	65275-57		Screw		Appelez-nous	-
4	69300-1		Handle, Door		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
8	WP61003045		Shelf Trim   (Replaces: 68832-4)				$ 129.55
9	WP61003045		Trim, Shelf   (Replaces: 68832-7)				$ 129.55
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
11	64097-11		Organizer, Shelf		Appelez-nous	-
12	53709-20		Hinge, Upper		Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
13	70121-4		Cover, Upper Hinge (wht)		Appelez-nous	-
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	69514-2		Hinge, Center		Appelez-nous	-
17	65275-55		Screw		Appelez-nous	-
18	69515-1		Shim, Center Hinge		Appelez-nous	-
19	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
20	69517-1		Pin, Center Hinge		Appelez-nous	-
21	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
24	65275-48		Screw		Appelez-nous	-
24	69256-2		Stop, Door		Appelez-nous	-
25	68036-3		Insert (wht)		Appelez-nous	-
26	60580-5		Insert		Appelez-nous	-
27	29356-1		Retainer, Nameplate		Appelez-nous	-
29	65275-53		Screw		Appelez-nous	-
29	68776-1		Shim Handle----na		Appelez-nous	-
30	60453-45		Trim, Frz. Door (wht)		Appelez-nous	-
