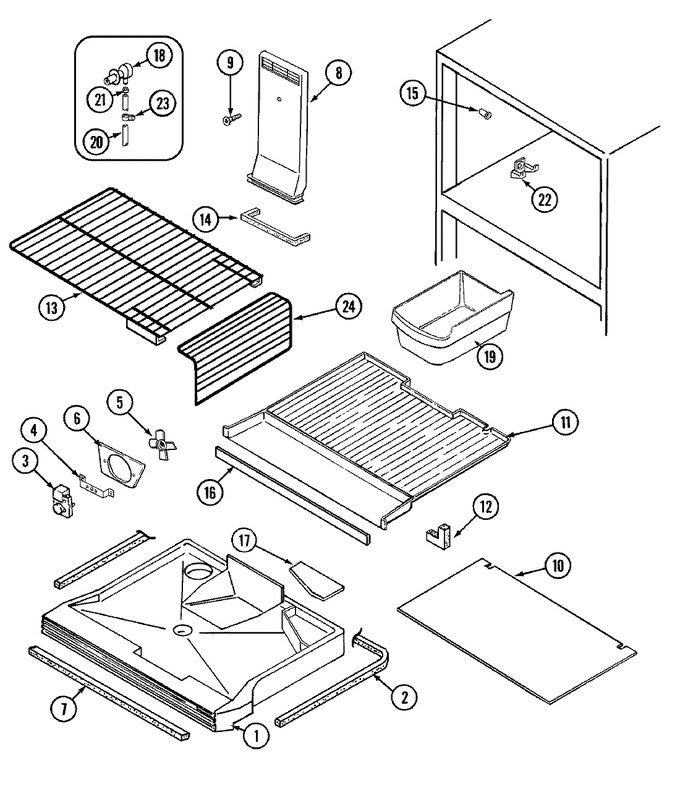

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69404-1		Tray, Styrofoam Mullion	10	Appelez-nous	-
2	69414-3		Seal, Mullion Tray	10	Appelez-nous	-
3	69106-2		Motor, Evaporator Fan	10			$ 95.45
3	406062-1		Screw	10	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
4	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
5	69107-1		Blade, Evaporator Fan	10	Appelez-nous	-
6	69811-6		Orifice Assy., Damper	10	Appelez-nous	-
7	69562-2		Seal, Mullion Tray (front)	10	Appelez-nous	-
8	70208-3		Tunnel, Air	10	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
10	66403-2		Cover, Evaporator	10	Appelez-nous	-
11	69398-1		Bottom, Frz.	10	Appelez-nous	-
12	69563-1		Seal, Frost Chest Bottom	10	Appelez-nous	-
13	70322-2		Shelf, Frz.	10	Appelez-nous	-
14	60478-1		Spacer	10	Appelez-nous	-
15	60313-1		Cup, Shelf	10	Appelez-nous	-
16	69413-2		Magnet	10	Appelez-nous	-
17	61664805		Cover, Plenum	10	Appelez-nous	-
18	68307-1		Grommet, Water Entry	10	Appelez-nous	-
19	WP67001255		Pan, Ice   (Replaces: 68346-1)	10			$ 182.77
20	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)	10			$ 11.19
21	WPM0114003		Clamp, Spring   (Replaces: 60333-4)	10			$ 9.95
22	66101-1		Stud, Shelf	10	Appelez-nous	-
22	400019-1		Screw	10	Appelez-nous	-
23	W10833902		Clamp, Tubing   (Replaces: 53516-8)	10			$ 9.89
24	70323-2		Leg, Shelf	10	Appelez-nous	-
