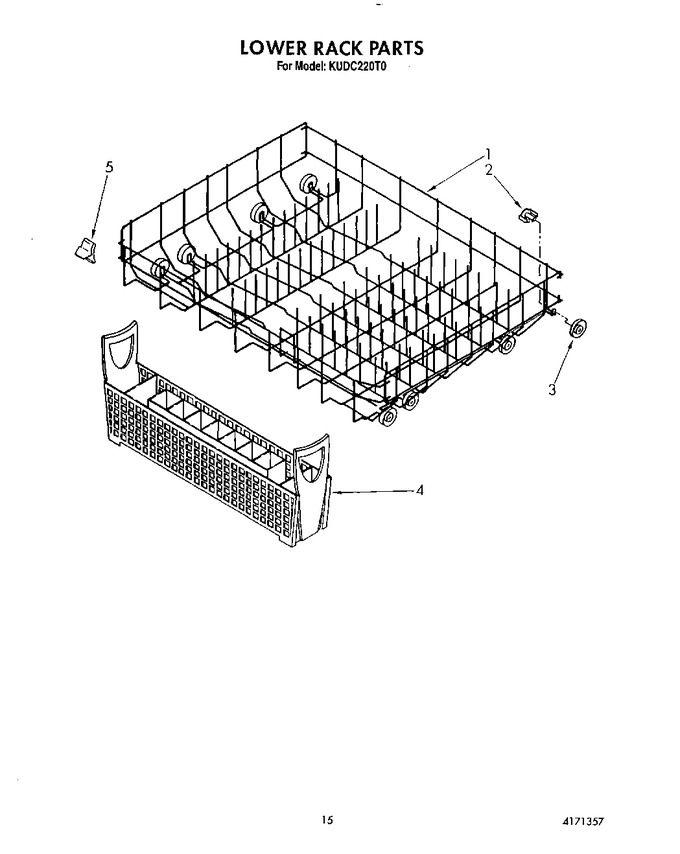

12 - Lower Rack


13 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4171307		Lower Rack Assembly (includes Items 2 & 3)		Appelez-nous	-
2	4162321		Axle, Lower Rack				$ 10.72
3	WP4162322		Wheel, Lower Rack   (Replaces: 4162322)			Immediately	$ 7.10
4	4160463		Basket, Silverware		Appelez-nous	-
5	4162575		Bumper, Lower Rack		Appelez-nous	-
