02 - Backguard Parts
03 - Body Parts
04 - Door Parts
05 - Cooktop Parts
06 - Drawer Parts
07 - Broiler Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

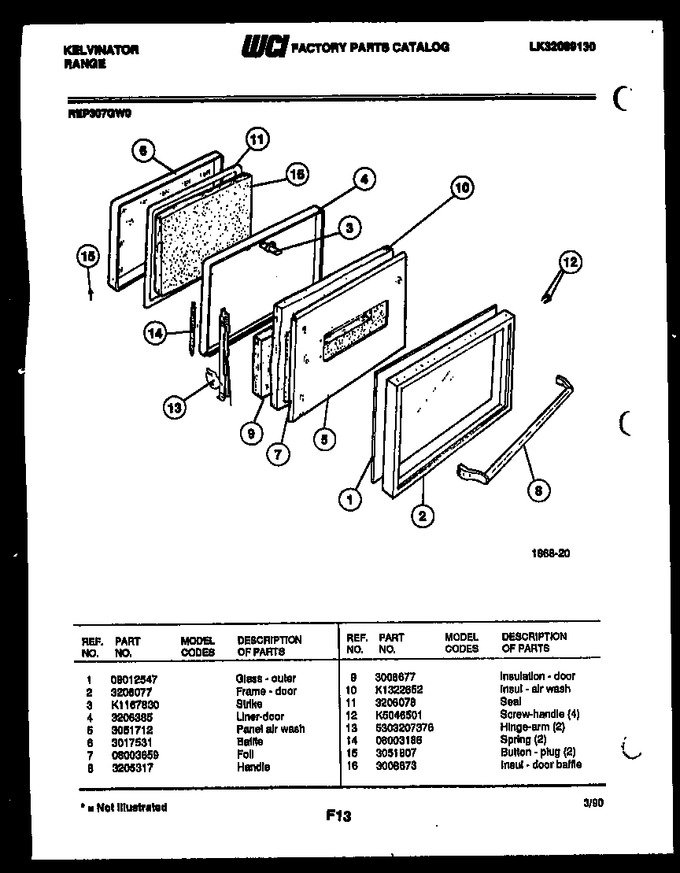

| 1 | 08012547 | Glass - Outer |
|
- | |||||
| 2 | 3206077 | Frame, Door |
|
- | |||||
| 3 | K1167830 | Strike |
|
- | |||||
| 4 | 3206385 | Liner-door |
|
- | |||||
| 5 | 3051712 | Panel, Airwash |
|
- | |||||
| 6 | 3017531 | Baffle |
|
- | |||||
| 7 | 08003659 | Foil - Aluminum |
|
- | |||||
| 8 | 3205317 | Handle |
|
- | |||||
| 9 | 3008677 | Insulation - Door |
|
- | |||||
| 10 | K1322652 | Insul - Air Wash |
|
- | |||||
| 11 | 3206078 | Seal |
|
- | |||||
| 12 | K5046501 | Screw-handle (4) |
|
- | |||||
| 13 | 5303207376 | Hinge-arm (2) |
|
- | |||||
| 14 | 08003186 | Spring (2) |
|
- | |||||
| 15 | 3051807 | Button, Plug (2) |
|
- | |||||
| 16 | 3008673 | Insul - Door Baffle |
|
- |
