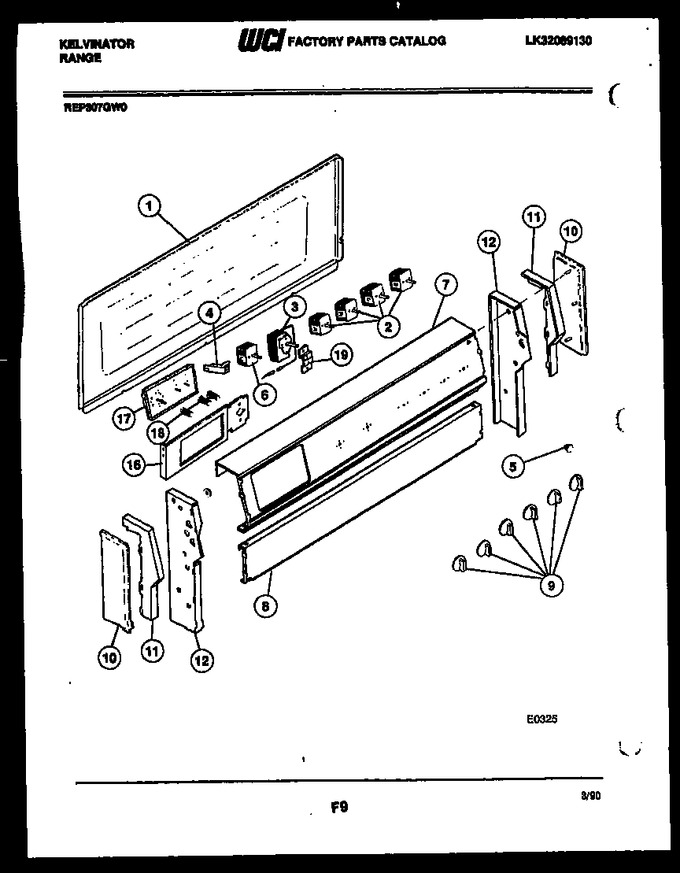

02 - Backguard Parts


03 - Body Parts


04 - Door Parts


05 - Cooktop Parts


06 - Drawer Parts


07 - Broiler Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017529		Cover-wire		Appelez-nous	-
2	3051540		Switch - S/u Small (2)		Appelez-nous	-
3	3934039		Thermostat		Appelez-nous	-
4	3051676		Signal Light - S/u & Clean (2)		Appelez-nous	-
5	K5139002		Lens - Signal Light (2)		Appelez-nous	-
6	08015771		Switch - Oven Select		Appelez-nous	-
7	K5310601		Panel - Backguard		Appelez-nous	-
8	K5137605		Panel Backsplash, Wheat		Appelez-nous	-
9	3015698		Knob (6)		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
12	3051670		Support-backguard Rh		Appelez-nous	-
16	K5127901		Bracket Mounting		Appelez-nous	-
17	K5260501		Timer		Appelez-nous	-
18	K1167946		Knob-clock (3)		Appelez-nous	-
19	K1317816		Bracket - Thermo Mtg		Appelez-nous	-
10A	3051674		Body-end Cap-r.h.		Appelez-nous	-
11A	3051672		Trim-end Cap-r.h.		Appelez-nous	-
12A	3051671		Support-backguard Lh		Appelez-nous	-
2A	K001313767		Switch - S/u Large (2)		Appelez-nous	-
4A	3051679		Signal Light-oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
