01 - Front Panel Parts

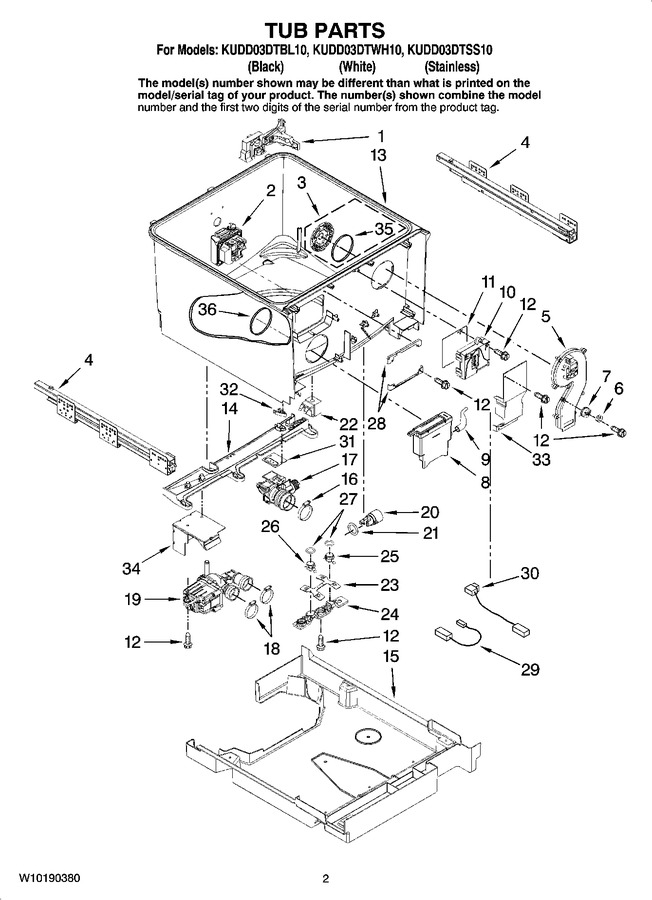

02 - Tub Parts
03 - Wash System Parts
04 - Upper And Lower Dishrack Parts
05 - Frame And Lid Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10162499 | Line Break Assembly (Replaces: 99003763) |
|
$ 301.19 | |||||
| 2 | 99003698 | Dispenser |
|
- | |||||
| 3 | WP99003605 | Bezel, Inlet/outlet (Replaces: 99003605) |
|
Immediately | $ 16.20 | ||||
| 4 | WP99003760 | Slide (right Hand) (Replaces: 99003760) |
|
$ 275.78 | |||||
| 4 | 99003759 | Slide (left Hand) |
|
$ 118.43 | |||||
| 5 | WPW10155595 | Fan Motor And Housing Assembly (Replaces: W10155595) |
|
$ 298.72 | |||||
| 6 | 99003696 | Bracket, Pressure Switch |
|
$ 53.57 | |||||
| 7 | 99003626 | Switch, Pressure |
|
$ 85.36 | |||||
| 8 | WP99003781 | Air Inlet Assembly (Replaces: 99003781) |
|
$ 160.67 | |||||
| 9 | 99003694 | Hose, Pressure Switch |
|
- | |||||
| 10 | 99003733 | Control Module |
|
$ 286.18 | |||||
| 11 | 99003782 | Plate, Mcm Enclosure |
|
- | |||||
| 12 | 99003740 | Screw |
|
$ 11.61 | |||||
| 13 | W10118026 | Drawer, Tub |
|
- | |||||
| 14 | Y6919650 | Shield, Drip |
|
- | |||||
| 15 | 99003714 | Cover, Bottom |
|
$ 55.98 | |||||
| 16 | WP616099 | Clamp, Drain Suction (Replaces: 99003631) |
|
Immediately | $ 7.03 | ||||
| 17 | WP6-920639 | Drain Pump Assy. (Replaces: W10190553) |
|
Immediately | $ 220.24 | ||||
| 18 | WP616099 | Clamp (Replaces: 99003632) |
|
Immediately | $ 7.03 | ||||
| 19 | 99003730 | Wash Pump |
|
$ 228.42 | |||||
| 20 | WPW10120019 | Sensor, Turbidity (Replaces: W10120019) |
|
$ 178.03 | |||||
| 21 | 99002651 | O-ring, Turbidity Sensor |
|
$ 19.03 | |||||
| 22 | 99003773 | Solenoid, Fine Drain |
|
- | |||||
| 23 | 99003727 | H Bracket |
|
- | |||||
| 24 | 99003701 | Bracket, Thermostat |
|
- | |||||
| 25 | 99003624 | Fuse, Thermal |
|
$ 67.38 | |||||
| 26 | 99003623 | Thermostat, High Limit |
|
$ 67.57 | |||||
| 27 | 99001979 | O-ring, Pump Thermostat |
|
$ 39.87 | |||||
| 28 | 99003699 | Bracket, Dispenser |
|
- | |||||
| 29 | 99003705 | Wire Jumper, Thermostat |
|
$ 57.65 | |||||
| 30 | 99003708 | Wire Jumper, Heater |
|
$ 8.31 | |||||
| 31 | W10118491 | Bracket, Drain Pump |
|
$ 45.76 | |||||
| 32 | W10190274 | Catch, Drawer Release |
|
$ 18.39 | |||||
| 33 | 99003758 | Barrier, Mcm |
|
- | |||||
| 34 | W10121259 | Shield, Motor |
|
- | |||||
| 35 | 99003715 | Filter |
|
$ 8.24 | |||||
| 36 | WPW10286124 | Seal (Replaces: 99003602) |
|
$ 10.51 |
